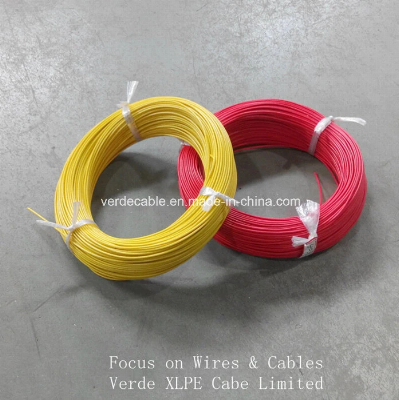

High Temperature Resistant Copper Wire Insulated Electric Wire

Flame Retardant High Temperature Resistant PAF PTFE insulated Wire Electric wireApplication:Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below. It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on. Product features:Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;  flame-retardant, Anti-ageing, long age of usage Rated voltage:600V and below Test of power-frequency withstand voltage:3000V Temperature range:-65~+250ºC Conductor: tinned copper or silver-plated copper Insulation: PFA PTFE Color:red yellow blue  green  white  black  orange  purple  brown Specification for AF250 Conductor Nominal Section(mm2)Conductor Construction   (No/mm)Average.Insulation Thickness(mm)Calculated.Outer Diameter(mm)D.C. conductor resistance at 20ºC(Ω/km)Tinned copperSilver coated copper0.0357/0.080.200.645625500.0510/0.080.300.903833700.067/0.100.300.903483390.087/0.120.300.962862800.107/0.140.301.021571500.127/0.15           30/0.070.301.051521450.147/0.16           19/0.100.301.081361300.1530/0.080.301.101111050.207/0.02           19/0.120.301.2087820.3519/0.160.301.4057540.5019/0.180.301.504037.50.8019/0.230.321.7924231.0019/0.260.352.0021201.2019/0.280.452.3019181.5019/0.320.452.5013122.0019/0.370.452.751092.5037/0.300.553.20873.0037/0.320.683.606.86.4Packing for Teflon Coated Electric WireOur WorkshopIf you want to know more about us and our products,pls contact us.sending email or telephon us:Linda LeeVice General ManagerVERDE XLPE CABLE LIMITED  Focus on Wires and CablesBe Your Most Reliable Supplier/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
