PV1f PV Solar Cable/System Panel Cable Rhh Rhw Solar System Wiring

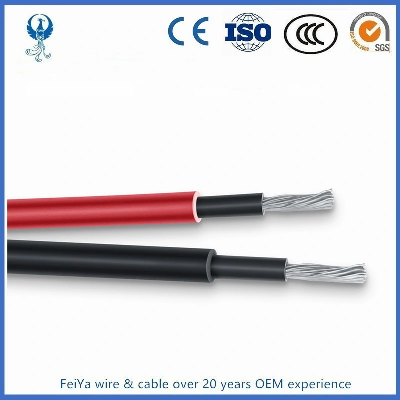

High quality Solar cable PV1-F 1x4mm2 solar cable  Description: Conductor  :  99.99% copper, tinned UV resistance: EN60811-501 Insulation material  :  XLPE(XLPO) High voltage and High current  Double walls insulation Temperature range  :  -40ºC~90ºC Halogen-free material: EN50525-1 Color  :  Black / Red / Blue Flame test according to   :   DIN EN 50265-2-1 / U L1571(VW-1) Smallest permisssible bending radius  :   5xD Flame test: EN60332-1-2 Smoke density: EN61034-2 Ozone resistance: EN50396 Oil resistance: EN60811  Technical Data of single core solar cable: SizeCross   SectionConductorStructureOuterDiameterMax. DC Resistanceat 20ºCRated  VoltageRatedCurrentmm2mmmmΩ/kmVA1x2.5mm22.5mm248xΦ0.255.18.061000/1500301x4.0mm24.0mm256xΦ0.2856.14.971000/1500501x6.0mm26.0mm281xΦ0.36.43.521000/1500701x10mm210mm274xΦ0.47.32.121000/150095 Technical Data of double core: Size Cross Section Conductor Structure Outer Diameter Max. DC Resistance at 20ºCRated VoltageRated Current mm² mm mm Ω/km V DCA 2 x 2.5mm² 2.5mm² 49 x ∅0.25 5.4 X 10.9 8.061000/150030A 2 x 4.0mm² 4.0mm² 56 x ∅0.285 6.1 X 12.3 4.97 1000/150050A 2 x 6.0mm² 6.0mm² 78 x ∅0.30 6.4 X 12.9 3.52 1000/150070A  Advantage:·Dual wall insulation.Electron beam cross-linked·Excellent resistance to U.V,oil,greases,oxygen and ozone·Excellent resistance to abrasion·Halogen free, flame retardant,low toxicity·Excellent flexibility and stripping performance·High Voltage and Current carring capacity·TUV,CE approved        /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
