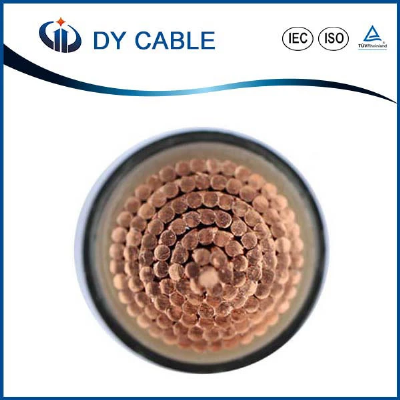

XLPE or PVC (Cross-linked polyethylene) Insulated Electric Power Cable Manufacturer

XLPE or PVC (Cross-linked polyethylene) Insulated Electric Power Cable1.     Applicable Standard:GB/T 12706-2008, IEC 60502-20052.     Product Description:For XLPE insulated power cable, either chemical method or physical method had been employed to transform the molecular of PE from liner structure into three-dimensional network structure, i.e. thermoplastic PE and been transformed into thermosetting XLPE. After cross-linking, the mechanical performance, heating aging property and ambient stress resistance have been greatly improved, while its excellent electrical properties are still maintained.Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, hot water and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non halogen and three classes of A, B, C.Maximum rated temperature of cable conductor is 90ºCMaximum short-circuit temperature of cable conductor ≤ 250ºCThe temperature when laying cable ≥ 0ºC, The minimum bending diameter of cable is stipulated as follow:For single-core cable: 20(D+d)±5% in mmFor multi-core cable: 15(D+d)±5% in mmWhere: D is the actual outer diameter of the cabled is the actual outer diameter of the conductor.3.     Name & Application    TypeDescriptionApplicationVVCopper ( Al) PVC insulation PVC sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.VV22Copper (Al) steel tape armored PVC insulation / sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.VV32Copper (Al) thin steel wire armored PVC insulation / sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.VV42Copper (Al) thick steel wire armored PVC insulation / sheath power cableCan be laid in indoor tunnels and pipelines, can't bear external mechanical force.YJVCopper ( Al) XLPE insulation PVC sheath power cableCan be laid indoor, outdoor, tunnels, reinforced concrete pipelines or loose soil. Cable can't bear outer mechanical force, but can bear a certain traction force.YJV22Copper (Al) steel tape armored XLPE insulation PVC sheath power cableLaid underground, cable be bear outer mechanical force, but should not bear a large traction force.YJV32Copper (Al) thin steel wire armored XLPE insulation PVC sheath power cableLaid indoor, tunnel or mines. Cable can bear outer mechanical force and fairly large traction force.YJV42Copper (Al) thick steel wire armored XLPE insulation PVC sheath power cableCan be laid in vertical section, indoor, tunnels or mines. Cable can bear outer mechanical force and very large traction force.4.     SpecificationTypeVoltageSectionCore NumberVVYJV0.6/1kV1.5-800mm21VV22 VV32YJV22 YJV322.5-400mm2VV42YJV4210-400mm2VVYJV0.6/1kV1.5-400mm22VV22 VV32YJV22 YJV322.5-400mm2VV42YJV424-400mm2VVYJV0.6/1kV1.5-400mm23VV22 VV32YJV22 YJV322.5-400mm2VV42YJV424-400mm2VV VV22YJV0.6/1kV4-400mm24,3+1,5,4+1, 3+2VV32 VV42YJV32 YJV424-400mm25.     Top Ranking Manufacture Equipment for HV/MV/LV of Power cables from Professional SuppliersNameTypeOriginApplication35KV Cable production lineCCVMaillefer FinlandProduction of medium voltage insulation wire core35KV Cable production lineCCVTROESTER GermanyProduction of medium voltage insulation wire core110KV Cable production lineCCVTROESTER GermanyProduction of high voltage insulation wire core500KV Cable production lineVCVMaillefer FinlandProduction of high voltage insulation wire core500KV Cable production lineVCVTROESTER GermanyProduction of high voltage insulation wire core35KV rubber cable  production lineCCVTROESTER GermanyProduction of medium voltage rubber cables630 Frame type stranding machine91 wiresPourtier FranceProduction for blocks of large section conductor3600 Drum-twister for milliken conductorDPTC3600Pourtier FranceProduction for blocks of large section conductorHigh voltage cable out-sheath Product LineΦ150+90Germany (Shanghai) TROESTER Machinery Co., Ltd.Production for EHV cable double sheath6. Our Services:Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.1). Factory: 200,081 square meters, available for OEM&ODM;2). Lead time: 5-7 working days after payment received;3). Authentication: CCC,ISO9001, CQC, etc;4). Payment terms: T/T, L/C;5). Guarantee: 17 years;6). QC inspection: Strict inspection before delivery;7.After-sales Service:1). All our cables will be tested well in production and before delivery.2). Please contact us if any problem, we will respond within 24 hours.8. Company Certifications:National Products
