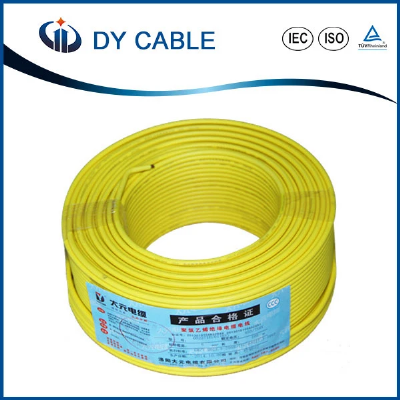

Building Wire House Wire Thw Cable Twisted Wire

Product DescriptionPVC Insulated BV/BVR House Wiring Electrical Cable Copper core pvc insulasted electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property. TypeH05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVRVoltage Rate300/500V, 450/750VRange of Nominal cross section:0.75 mm2 ~ 630 mm2ApplicationThese cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.StandardIEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734ConstructionsConductor: Class 1/2 Plain annealed copper wires, solid or strandedInsulation: PVCCore color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on requestMax. Operating Temperature70°C, can be 90°C,105°C as per requirementPacking100 meter/roll or as per requirementProduction Capacity100 kilometer/ dayMOQ10000 meters for small size, 5000 meters for middle size, 1000 meters for big sizeDelivery time10~15 working daysRemarkThe cable can be of flame retardance, fire resistance and other propertyTechnical Information:1. U0 /U: 300/500V,450/750V2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T87343. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded5. Insulation:PVC6.Cores:single core7.Range of Nominal cross section: 0.75~240sqmm8. Jacket: without Jacket9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request10.Flame ratardance,fire resistance and other property can be available11.Packing:100 meter/roll or as per requirement12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.13.OME can be available14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.Parameter of bv/bvr cable ModelNameBVCopper Core PVC Insulation WireBLVAluminum Core PVC Insulation WireBVRCopper Core PVC Insulation Flexible WireBVVCopper Core PVC Insulation PVC Sheath Round WireBVVBCopper Core PVC Insulation PVC Sheath Flat WireBLVVBAluminum Core PVC Insulation PVC Sheath Flat WireBV-90Copper Core Heat-resistance 105 PVC InsulationBV cable  of Common wire Kindly note that we can make it as your requirement BV Cable data 1:Norminal Sectional area mm2Conductor No/Dia.mmNominal Insulated thick mmMax overall Dia.mmConductor Resistance at 20°CMin insulated resistance at 70MΩ/KMWeight Kg/kmCuAlCuAl1.51/1.380.7 3.3 12.1-0.011 19.2 -1.57/0.520.7 3.5 12.1-0.010 20.6 -2.51/1.780.8 3.9 7.4111.80.010 30.815.0 41/2.250.8 4.4 4.617.390.008545.521.0 61/2.760.8 4.9 3.084.910.0070 65.0 29.0 107/1.351.0 7.0 1.833.080.0065110.0 52.0 167/1.71.0 8.0 1.151.910.0050 170.0 70.0 257/2.141.2 10.0 0.7271.20 0.0050 270.0 110.0 357/2.521.2 11.5 0.5240.8680.0040 364.0 150.0 5019/1.781.4 13.0 0.3870.6410.00455000.0 200.0 7019/2.141.4 15.0 0.2680.4430.0035688.0 269.0 9519/2.521.6 17.5 0.1930.320 0.0035953.0 360.0 12037/2.031.6 19.0 0.1530.2530.00321168.0 449.0 15037/2.251.8 21.0 0.1240.2060.00321466.0 551.0 18537/2.522.0 32.5 0.0990.1640.00321808.0 668.0  BV/bvr Cable data 2:Norminal Sectional area mm2Conductor No/Dia.mmNominal Insulated thick mmMax overall Dia.mmConductor Resistance at 20°CMin insulated resistance at 70MΩ/KMWeight Kg/km2.59/0.410.8 4.27.410.01133.0 419/0.520.8 4.84.610.00948.0 619/0.640.8 5.63.080.008468.0 1049/0.641.0 7.61.830.0072115.0 1649/0.641.0 8.81.150.0062176.0 2598/0.581.2 11.0 0.7270.0058272.0 35133/0.581.2 12.50.5240.0052384.0 50133/0.681.4 16.50.3870.0051510.0 70189/0.681.4 16.50.2680.0045714.0 95259/0.681.0 19.50.1390.0035965.0 120259/0.761.8 22.0 0.1530.00321210.0 All the goods are full meter and  working life are 25 years!Company Information  BV cable  factory and worshop corner solar cable have one big workshop about 10,000m2,  our factory is about 61,081m2 with register capital about 540 million. 700 stuff and 40 engineer.  every step is to make sure the delivery time and quality!  Packaging & Shipping   BV cable  packing, we can also make it as your need for that  we have two professional wooden engineer   Inspection machine BV cable six inspection machine We inspect every product before deliverying the goods to ensure the quality!ContactSarina MaDepartment sale managerInternational Trade DepartmentLuoyang Asian Sun Industrial Group Co., Ltd=================================Tel: +86-379-65170063                     Mobile: + 86-18338892373Web: http://dycable.en.made-in-china.comAlibaba Showroom: http://dycable.en.made-in-china.com=================================
