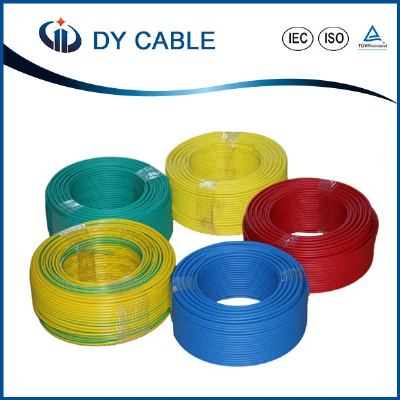

300/500V, 450/750V PVC Insulated Stranded Copper Wire BV/Bvr Wire

Single Core Stranded Copper wire Household BV/BVR Wire  Copper core pvc insulated electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduct and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property. Technical Information:1. U0 /U: 300/500V,450/750V2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T87343. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded5. Insulation:PVC6.Cores:single core7.Range of Nominal cross section: 0.75~240sqmm8. Jacket: without Jacket9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request10.Flame ratardance,fire resistance and other property can be available11.Packing:100 meter/roll or as per requirement12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.13.OME can be available14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.Parameter of bv/bvr cableModelNameBVCopper Core PVC Insulation WireBLVAluminum Core PVC Insulation WireBVRCopper Core PVC Insulation Flexible WireBVVCopper Core PVC Insulation PVC Sheath Round WireBVVBCopper Core PVC Insulation PVC Sheath Flat WireBLVVBAluminum Core PVC Insulation PVC Sheath Flat WireBV-90Copper Core Heat-resistance 105 PVC InsulationBV cable  of Common wire Kindly note that we can make it as your requirement BV Cable data 1:Norminal Sectional area mm2Conductor No/Dia.mmNominal Insulated thick mmMax overall Dia.mmConductor Resistance at 20°CMin insulated resistance at 70MΩ/KMWeight Kg/kmCuAlCuAl1.51/1.380.7 3.3 12.1-0.011 19.2 -1.57/0.520.7 3.5 12.1-0.010 20.6 -2.51/1.780.8 3.9 7.4111.80.010 30.815.0 41/2.250.8 4.4 4.617.390.008545.521.0 61/2.760.8 4.9 3.084.910.0070 65.0 29.0 107/1.351.0 7.0 1.833.080.0065110.0 52.0 167/1.71.0 8.0 1.151.910.0050 170.0 70.0 257/2.141.2 10.0 0.7271.20 0.0050 270.0 110.0 357/2.521.2 11.5 0.5240.8680.0040 364.0 150.0 5019/1.781.4 13.0 0.3870.6410.00455000.0 200.0 7019/2.141.4 15.0 0.2680.4430.0035688.0 269.0 9519/2.521.6 17.5 0.1930.320 0.0035953.0 360.0 12037/2.031.6 19.0 0.1530.2530.00321168.0 449.0 15037/2.251.8 21.0 0.1240.2060.00321466.0 551.0 18537/2.522.0 32.5 0.0990.1640.00321808.0 668.0  BV/bvr Cable data 2:Norminal Sectional area mm2Conductor No/Dia.mmNominal Insulated thick mmMax overall Dia.mmConductor Resistance at 20°CMin insulated resistance at 70MΩ/KMWeight Kg/km2.59/0.410.8 4.27.410.01133.0 419/0.520.8 4.84.610.00948.0 619/0.640.8 5.63.080.008468.0 1049/0.641.0 7.61.830.0072115.0 1649/0.641.0 8.81.150.0062176.0 2598/0.581.2 11.0 0.7270.0058272.0 35133/0.581.2 12.50.5240.0052384.0 50133/0.681.4 16.50.3870.0051510.0 70189/0.681.4 16.50.2680.0045714.0 95259/0.681.0 19.50.1390.0035965.0 120259/0.761.8 22.0 0.1530.00321210.0 All the goods are full meter and  working life are 25 years!Company InformationBV cable  factory and worshop corner Our factory is about 200,081m2 with register capital about 200 million. 700 stuff and 40 engineer.  every step is to make sure the delivery time and quality!Packaging & ShippingBV cable  packing, we can also make it as your need for that  we have two professional wooden engineer.  Inspection machineBV cable six inspection machineWe inspect every product before deliverying the goods to ensure the quality!ContactAlex YangDepartment sale managerInternational Trade DepartmentLuoyang Dayuan Cable Factory Co., Ltd=================================  Web: http://dycable.en.made-in-china.comAlibaba Showroom: http://dycable.en.made-in-china.com=================================/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
