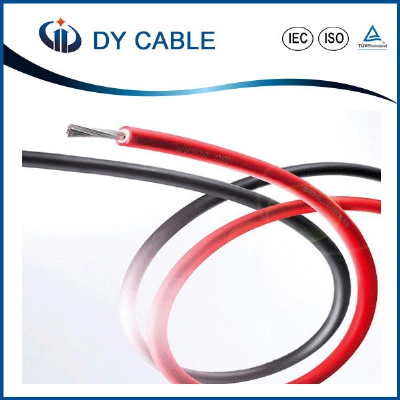

TUV Approved PV Solar Cable Manufacturer

TUV Approved PV Solar Cable ManufacturerProduction Introduction Solar PV cable is a kind of special cable used in solar power generation system. It is mainly applicable to DC voltage, derivate links of generating equipment, confluence connection between components and generating equipment system of DC1800V. It has climate resistance, cold resistance, high temperature resistance, friction resistance, UV and ozone resistance and other characteristics. The life service is at least 25 years. Tinned copper conductor has superior conductive effect. High performance insulation and sheath after high energy electron accelerator radiation crosslinking plays an absolutely reliable insulating performance and mechanical performance. This product is green, free halogen low smoke, low halogen low smoke product. In the event of fire accident, flame spread slowly, smoke concentration is low, high visibility, small amount of harmful gas release, easily evacuation for people, and have more time to deal with fire.Production Specificationl  Production name: photovoltaic cablel  Model: PV1-Fl  Standard: 2 Pfg 1169/08.2007l  Conductor material: Tinned copperl  Insulation material: Low smoke zero halogen flame retardant radiation crosslinked polyolefinel  Sheath material: Low smoke zero halogen flame retardant radiation crosslinked polyolefinel  Nominal cross section: 6.0mm ²l  Ampacity: 70Al  Core Number: 1l  Conductor Structure: Mutiple-strand Tinned Copperl  Weight: 100kg/kml  Conductor diameter: 3.3mml  Product diameter: 7.0±0.1mml  Resistance(20ºC): ≤3.39Ω/kml  Test Voltage: 6.5KV/5min, no break downl  Environmental temperature: -40~90ºCl  The highest temperature of conductor: +120ºCl  Short circuit temperature: 5 seconds, 200ºCl  Service life: >25 years(-40~+90ºC)l  Rated voltage: 0.6/1kV(AC)  1.8kV(DC)l  Climate resistance: UVl  Flame retardant: single vertical burning(IEC60811-2-1)l  Sunlight resistance test: HD605/A1l  Ozone resistance test for finished cable: EN50396l  Smoke density: IEC61034,EN50268-2l  Halogen acid release quantity: IEC670754-1 EN50267-2-1Executive Standard:PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German). No-haogen PV-Cable Type: PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable. Application:Applied to  solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .Solar Cable InformationItemPerformanceParameter1conductortinned copper wire2insulationXLPO3jacketXLPO4colorblack, red, blue...5rated voltageAC: 0.6/1kv; DC:1.8kv6working temperature-40ºC~+90ºC7projected lifetime25years8certificationTUV9featuresLow smoke zero halogen,excellent properties of cold-resistant,UV-resistance, ozone-proof and weather-proof. Flame retardant, resistance to cut marks and penetration.Single Core Solar Cables Main type specificationPlease note that we can make as your requirementsTypeSectional area(mm2)ConductorInsulationJacketWeight(kg/km)No./diadiammDiammDiaPV1-F1.530/0.251.600.753.100.804.7037.4PV1-F2.549/0.252.100.754.100.805.2064.6PV1-F452/0.32.600.754.100.805.7064.6PV1-F678/0.33.200.754.700.806.3085.6PV1-F1084/0.44.700.756.200.807.80142.1PV1-F16126/0.45.800.757.300.808.90197.7PV1-F25196/0.47.600.759.100.808.90197.7Double Core Solar Cables Main type specification TypeSectional area(mm2)ConductorInsulationJacketWeight(kg/km)No./DiaOuter diaThicknessDiaThicknessDiaPV1-F/Round2x1.530/0.251.600.753.101.008.2098.6PV1-F/Round2x2.549/0.252.100.753.601.009.20131.2PV1-F/Round2x452/0.32.600.754.101.0010.20171.0PV1-F/Round2x678/033.200.754.701.0011.40225.8PV1-F/Flat2x1.530/0.251.600.753.100.804.7x9.576.2PV1-F/Flat2x2.549/0.252.100.753.600.805.2x10.5100.4PV1-F/Flat2x452/0.32.600.754.100.805.7x11.5130.7PV1-F/Flar2x678/0.33.200.754.700.806.3x12.7172.7  About Packagesimple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirementAbout Asian Sun Group(Dayuan Cable)1: Group with seven sub-companies 2: Factory about 200,081 square meters;3: 800 staffs and 40 engineers, 11 production lines;4: production capacity: 100,000m/day.Our service1)  Inquiries are answered within 12 hours and OEM is welcome.2)  11 production lines, experienced QC to control the quality of kinds of cables.3)  CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.4)  Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.)  Ship your order immediately after contracted. We ship worldwide.6)  800 staffs and 40 engineers, we all glad to provide you best service. Welcome You Visit Our Factory! Please Contact UsCathy ShiDepartment sale managerInternational Trade DepartmentLuoyang Asian Sun Industrial Group Co., Ltd========
