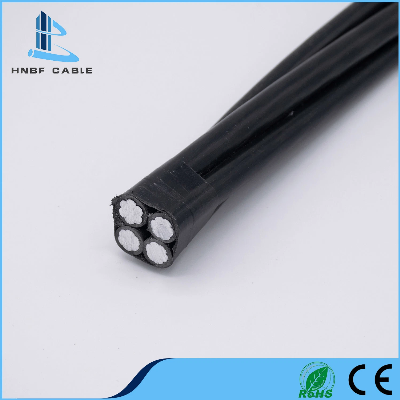

Aluminum Conductor XLPE PE Insulated Cable Quadruplex Overhead Cable

aluminum conductor xlpe pe insulated cable quadruplex overhead cableStandards :  ASTM B232 IEC BS DIN NFC 33-209 ISO9001-2008 Rated voltage 0.6/1kV 10kV 25kV 35kV Nominal Cross-sectional Areas(sqmm)10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2ConstructionPhase ConductorCables manufactured in bare aluminum, hard, class A stranding.InsulationConstituted by Thermoplastic(PE) or Thermoset(XLPE) polyethylene.Neutral ConductorThe neutral conductor can be a bare aluminum cable(AAC), AAAC cable or an aluminum cable with steel core(ACSR).Type & Description ABCCABLENo. of coreCross-section mm21, 2, 4, 4+21+k, 2+k, 3+k1+k+16, 2+k+16, 3+k+1610-185Types and Applications of XLPE insulated abc cable (service drop)Duplex Service Drop To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.Triplex Service Drop To supply power from the utility`s lines to the consumer`s weather head. For service at 600 volts or less (phase to phase) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.Quadruplex Service Drop Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s service head where connection to the service entrance  cable is made . To be used at  voltages of 600 volts or  less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors  or 90 for XLPE insulated conductors.Specification (mm2)Conductor structure(Compacted AL) (No./mm)Insulation MaterialInsulationThickness(mm)Approx.OverallDimeter (mm)Approx. Weight(kg/km)  2×167/1.72XLPE(HDPE)1.214.6131.42×257/2.151.216.8189.0 2×357/2.541.419.8264.52×507/2.921.422.6344.12×7019/2.151.425.6470.0 2×9519/2.541.629.8615.53×167/1.721.215.7197.13×257/2.151.218.1283.53×357/2.541.421.3396.73×507/2.921.424.3516.23×7019/2.151.427.6705.13×9519/2.541.632.1968.24×167/1.721.217.6262.94×257/2.151.220.3378.0 4×357/2.541.423.9528.94×507/2.921.427.3688.34×7019/2.151.430.9940.14×9519/2.541.636.0 1291.0  Some pictures of ABC Cable Packaging & ShippingPacking Details  : Wooden Drum, Steel Wooden Drum, Steel Drum, Roll, Wooden Case or your requirement.Delivery Details : 3-30 daysCompany InformationOur main products:* ABC Cables including 1kV, 10kV and 35kV with sizes 10sqmm to 240sqmm, 1 to 5 cores.* Power Cable including low voltage and high voltage up to 35kV and lower.Our the other products:*The other cables including AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW, Guy Wire, Stay Wire, Aluminum Clad Wire, OHGW Wire, Electrical Wire, THW, THHN, THWN etc.Why Choose Us1. Strict quality control system, excellent quality with reasonable price.2. Strong and Professional R&D team to meet your specific needs.3. Rapid delivery and feedback. Faster lead time than our competitors.4. OEM service available based on official & legal authorization.5. Free sample is available.6. Appointed shipping company is acceptable./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
