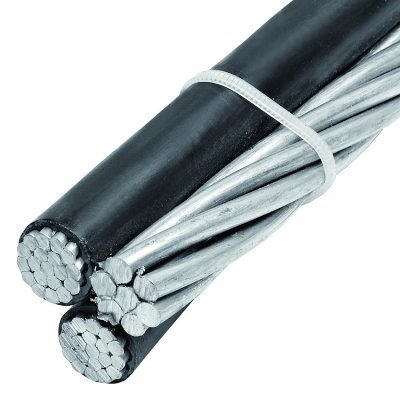

Aluminum Conductor Triplex Aerial Bundle Cable ABC

Aerial Insulated Cable(ABC)Aerial Insulated Cable with rated voltage 1kV and belowApplications The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.   Manufacturing standards ASTM ICEA BS IEC NFC GB AS/NZS etc.Operating featuresRated voltage Uo/U is 0.6/1kV  Max.Continuous permissive working temperature of conductor: PVC insulation should be not more than 70 ,and XPLE insulation should be not more than 90ºC .The installation temperature of cable should be not less than -20ºC  When overall diameter of cable(D)is less than 25mm,permissive bending radius of cable should be not less than 4D.When overall diameter(D)of cable is equal to and above 25mm,permissive bending radius of cable should be not less than 6D.TechPackaging & DeliveryPackaging Details                              1. Length to the client's requirement                                2.Choose a reasonable length of the disc according to the cable size                               3.Steel wooden drum (fumigation) ,wooden drum Port                       Qingdao,Shanghai,customer requirements Lead Time:             quantity(meters)1-50005001-2000020001-50000>50000Usually  Est Time(days)101520to be negotiatedOur CompanyHenan Baofeng Cable Co,LTD. is a professional cable manufacturer which integrades R&D, production and sales together.The factory Zhengzhou Lemei Wire & Cable Co., LTD was established in 1994. Our corporation has passed the ISO9001 quality management system certification,ISO14001 environmental management  system certification GB/T28001-2001 Ooccupaional health and safety management system certification,CE European Union Product Certification,CCC China Compulsory Certification,PCCC Power Product Certification, and Flame and Fire Retardant Cable Certification, Coal Safety Certification,High-tech New Enterprise in Henan Province and China Famous Brand.  We have the advanced production and testing equipment made from China and abroad countries,completed scientific management system, and mature production technology with strict controlling of raw materials, to provide qualified and reputed products and services for customers. The annual production capacity  is 1450000.00 km cables and wires. in our factory,there are above 300 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation.WIth strong technical forces indeed,we have many technical and production workers to make sure the production demand. The main products we can produce are Aerial Bundled Cables(ABC), bare conductors and power cables including all the three series products.  Our products sales network has covered more than 20 provinces and municipalities in China.most of products are sold to many countries for overseas marketing including the following areas like Philipines, Indonesia, Bangladesh, UK, Congo, Iran, Australia, Tanzania, USA, Canada, Madagascar, Parkistan, South Africa etc.  Our principle is quality first,customer is God,to make them satisfied. Our goal is Baofeng cable,linking globally,to make the worldwide power grid operating safety. Our certificateFAQ1.Which standards do you comply with when you produce the electrical wires and cables ?  We can provide the products according to ASTM, ICEA, BS, IEC,NFC,AS/NZS and GB standards.  2.Which payment term do we accept?   T/T 30% in advance and L/C 100% at sight.3.How long meter cable for one wooden drum?  This is according to cable's diameter and customer's requirement.4.How about your delivery time?  According to your order's quantity , for one million meters,it usually need 20 days.5.Do you provide sample for free?  Yes , we provide the sample to you for free , you only need to paid freight.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
