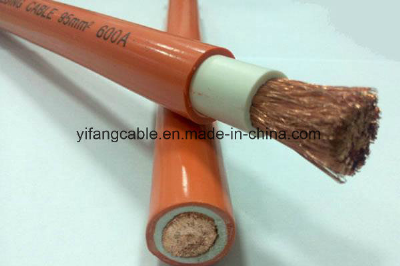

16mm2 25mm2 35mm2 50mm2 Electric Welding Cable Flexible Rubber Cable

Product DescriptionWelding CableWelding cable is used in welding machines and connection pliers. Low voltage is not more than AC 200V and DC peak value is 400V. The long time remissible operating temperature is not more than 65 degrees. The product is suitable for welding machines where the voltage to the ground is not more than DC 200V and the pulsating current value is 400V.CONSTRUCTIONThe welding cable is made of copper conductor and natural rubber sheath. It can also be made of copper conductor, chloroprene rubber or other syntheitic sheath. Product Parameters Nominal Section Area (mm2)Copper Wire No./Dia. (mm)Insulated Sheath Thickness (mm)Average of the Max. Outer Dia. (mm)Conductor Resistance at 20ºC (≤Ω/km)Weight (kg/km)10322/0.201.89.71.91151.616513/0.202.011.51.61224.025798/0.202.013.00.758326.0351121/0.202.014.50.536430.0501596/0.202.217.00.379600.0702214/0.202.419.50.268818.1952297/0.202.622.00.1981082.7  Detailed Photos   Packaging & ShippingThe welding cable comes in coils.Certifications--Sales MapCompany Profile Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.FAQ1.Q:Are you a factory or trading company?  A: Manufacturing base in Henan, China, with more than 500 workers.2.Q:How can I visit there?  A: Sure, if you need, we will arrange the driver to pick you up. 3.Q:How can I get some samples?  A: Contact me on below, and determine sample and address for shipping.  4.Q:Have you ever supplied cables to our country?  A: Yifang Cable has been sold to over 100 countries and regions in the world. You can contact me for details.5.Q:What is your MOQ? A: MOQ Normally 500 meters for big diameter cables. Please contact me for detail info if you have specific cable requirement. 6. Q:When can I get the price? A: Usually quote within 6 hours after we get your inquiry. 7.Q:How long is your delivery time? A: According to your order's quantity, our lead time is usually 3 - 20 working days./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
