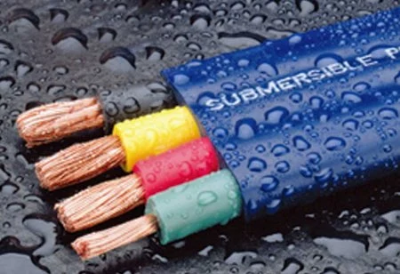

Rubber Insulated and Sheathed Water Resistant Flat Submersible Pump Cable 12AWG

Specifications:FLAT SUBMERSIBLE PUMP CABLE 2 & 3 CONDUCTOR W/ GROUND 600 VOLTSInsulation:POLYVINYL CHLORIDE & NYLONJacket:POLYVINYL CHLORIDESizes:14 - 500 MCM, 90°C Dry, 75°C WetApplications:Heavy duty (double jacketed), Flat Submersible pump cable suitable for use within well casings for wiring deep well fresh or salt water submersible pumps.Conductor:Class C, soft drawn, bare copper per ASTM B3 and ASTM B8.Insulation: Heat and moisture resistant, polyvinyl chloride meeting the requirements of UL 83 for Type THHN and THWN wires. The insulation is acceptable for use in locations at 90?C dry or 75?C wet. The insulation thickness is in accordance with UL 83.Conductor Jacket:A nylon jacket is applied directly to the surface of the PVC insulation. Nylon shall meet the requirements of UL 83. The thickness is in accordance with UL 83.Ground Conductor:Class C, soft drawn bare copper per per ASTM B3 and ASTM B8. The conductor is insulated with PVC/Nylon and the nominal overall diameter shall equal the insulated circuit conductors Meets the requirement of UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899 600 volts, 90° C Dry & WetDesigned for heavy duty useTemperature range -40° to 90° ROHS compliance (lead free) Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps.Contraction - Rubber AWG Pump Cables Class C Flexible, bare copperInsulation : PVC or RubberSheath    :  PVC or RubberColour Code : Black - Yellow - Red (Without Ground)                       Black - Yellow - Red - Green (With Ground)Flat Jacketed Submersible Pump Cables Without GroundCONDUCTOR SIZE (AWG)NO OF CONDUCTORNOS OF DIA. OF WIRECORE DIA. (MM)NOMINAL SHEATH THICKNESS (MM)CABLE DIA.14341 x 0.2543.851.1514.60 x 6.4012365 x 0.2544.501.1516.80 x 7.40103105 x 0.2545.301.1518.70 x 7.9083168 x 0.2546.501.4023.70 x 9.9063226 x 0.2548.001.4028.00 x11.4043420 x 0.25410.102.0035.50 x14.7023665 x 0.25411.302.0039.50 x16.2013817 x 0.25413.602.2045.50 x18.301/031045 x 0.25413.602.2045.50 x18.302/031330 x 0.25416.602.2051.00 x20.003/031672 x 0.25418.002.4060.00 x23.504/032116 x 0.25419.802.6565.00 x25.00   Flat Jacketed Submersible Pump Cables WITH GroundCONDUCTOR SIZE (AWG)NO OF CONDUCTORNos & Dia. of WireGround Conductor Size (AWG)CORE DIA. (MM)NOMINAL SHEATH THICKNESS (MM)CABLE DIA. (MM)14341 X 0.254143.851.1518.00 x6.5012365 X 0.254124.501.1521.00 x7.60103105 X 0.254105.301.1524.30 x7.9083168 X 0.254106.501.4029.70 x9.9063266 X 0.25488.002.0036.00 x11.8043420 X 0.254810.102.0045.10 x14.7023665 X 0.254611.302.2050.10 x16.2013817 X 0.254613.602.2058.10 x19.001/031045 X 0.254615.602.2058.10 x19.002/031330 X 0.254618.002.2066.50 x21.50 Note :The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance as per Class 5 of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 In view of continuous improvements in our design and process, specifications given here in are subject change without notice. ADVANTAGESCut, tear and abrasion resistantExceptional long term performanceExcellent resistance to oils, acids, chemicals and ozoneExcellent impact and weather resistanceExcellent electrical propertise Our companyYifang Electric group mainly specialized in wire&cables,including designment,production and sale.Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.Our certificateFAQ1.Q:Are you a factory or trading company?  A: Manufacturing base in Henan ,China, with more than 500 workers.2.Q:How can I visit there?  A: Sure,If you need,we will arrange the driver to pick you up. 3.Q:How can I get some samples?  A: Contact me on below,Determin sample and address for shipping.  4.Q:Have you ever supplied cables to our country?  A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.5.Q:What is your MOQ? A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement. 6. Q:When can I get the price? A: Usually quote within 6 hours after we get your inquiry. 7.Q:How long is your delivery time? A: According to your order's quantity.Usually our lead time is 3 - 20 working days./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
