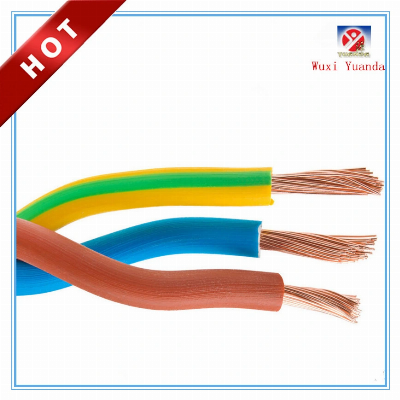

600V Silicne Rubber Insulated with Tinned Copper Cable

Wuxi Yuanda Electrical Material Co., Ltd. Is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE and CCC and ROHS Environmental Protection Instruction of European Union. UL3123 600V Silicne rubber insulated with tinned copper cableTechnical Data:Nominal Voltage: 600V Temperature Range: -60 ° C ~+150° C Testing Voltage: 2000V Conductor: Bare Copper or Tinned Copper Insulator: Silicone Rubber Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green Use: Inner fixed wires for Home electric Appliances, lightings, electronic equipment. Certificate No.: E216252  Specification:ConductorInsulationElectrical characteristicSpecAWGConductorconstructionNo./ φmmDiameter(mm)Nominalthickness(mm)Nominal outerdiameter(mm)Max outerdiameter(mm)Resistance20ºCΩ/kmPermissibleampacity20ºC-AMR307/0.100.30.781.92.1364.01.27287/0.120.360.781.952.15252.02.02267/0.160.480.782.052.25143.03.22247/0.200.60.782.22.492.05.15227/0.250.750.782.352.5556.88.73207/0.310.930.782.52.840.113.87187/0.3951.190.782.83.0123.022.02167/0.4951.490.783.13.414.635.04/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
