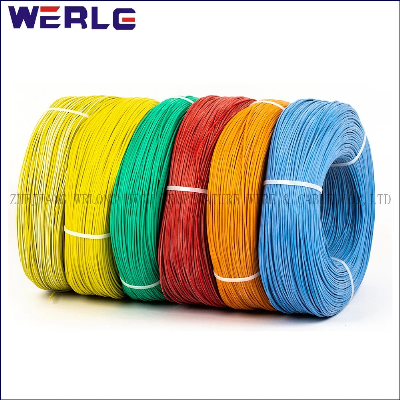

Silicone Rubber Insulated Wire and Cable with Product Certification

Product DescriptionSilicone Rubber Insulated Wire and cable with product certification TECHNICAL DATE Nominal Voltage:500V Temperature Range:-60ºC~+200ºC Conductor: stranded tinned copper Insulator: silicone rubber+fiberglass braided O.D.Tolerance:±0.05mm Testing Volta:2000V Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, yellow-green, etc. CHARACTERISTIC RoHs compliance, high temperature resistance, low temperature resistance, high voltage resistance, aging resistance, excellent electrical resistance property, excellent chemical property, etc. APPLICATION Apply to household appliance, illumination & lighting & headlamp, electronic equipment, electric machines, temperature sendsor, aircraft, aviation,  metallurgy chemical series, motor cars & ships, electric heating products, electrical installation, etc.Product ParametersAGRPConductorOverDiamter±0.05mm²InsulatorTechnical DataPacking(m/roll)sizematerialConductorConstructionNo./mmDiametermmInsulator MaterialBraidColourTemperatureresistance Nominal voltage0.2mm²tinned copper6/0.2+0.150.51.85siliconerubberfiberglassred,yellow,blue,green,black,white,purple,brown,orange,yellow-green: +200ºC500V5000.3mm²tinned copper16/0.150.691.9siliconerubberfiberglass5000.5mm²tinned copper28/0.150.912.22siliconerubberfiberglass4000.75mm²tinned copper24/0.21.132.43siliconerubberfiberglass4001.0mm²tinned copper32/0.21.32.7siliconerubberfiberglass2001.5mm²tinned copper30/0.251.583.15siliconerubberfiberglass2002.0mm²tinned copper41/0.251.853.5siliconerubberfiberglass2002.5mm²tinned copper50/0.252.044.15siliconerubberfiberglass2004.0mm²tinned copper54/0.312.534.7siliconerubberfiberglass1006.0mm²tinned copper81/0.313.285.40 siliconerubberfiberglass100 Detailed PhotosCompany Pictures  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
