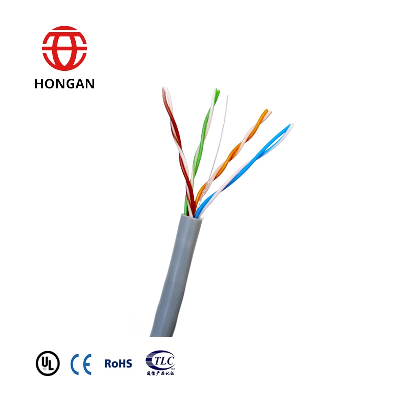

305m Cat5 Cat5e CAT6 Cat6e CAT6A Cat7 Ethernet Cable

Product DescriptionApplications:10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps-ATM, 622Mbps ATM, 1000Base-T  Standards:YD/T 1019-2013, ISO/IEC11801, ANSI/TIA/EIA-568-C, UL444(Apply to Indoor Data Cable), IEC61156  Characteristics:Physical/Electrical characteristicsDifferential Phase Delay(Max)45ns/100mImpedance4-100MHz  100±15ΩMutual Capacitance(Max)5. 6nF/100mD. C Resistance(Max)9. 5Ω/100m at 20ºC;Dielectric Strength Between Conductors(Min)2.5kV/2sPermitted Bend RadiusNo less than eight times the cable diameterTransmission Performance Frequency (MHz)Attenuation (Max)(dB/100m)NEXT(Min)(dB/100m)ELFEXT(Min)(dB/100m)RL(Min)(dB)Phase Velocity(Min)(m. /s)Phase Delay(Max)(ns/100m)44.153.34918. 80. 604c55285. 848. 842.919. 70. 610c547106. 547. 341200. 612c545168. 244.236. 9200. 614c543209. 342.835200. 615c5422510. 441. 33319. 30. 616c54131. 2511. 739. 931. 118. 60. 617c54062.517. 035. 425. 116. 50. 619c53910022.032.32115. 10. 620c538  Operating Temperature:-20ºC~+60ºCProduct Description:UTP CAT5e HSYV5e (Category 5E, PE Insulation, PVC jacket)  Structure ParametersTypeWire GaugePairsDiameter(mm)HSYV5e24AWG45. 0Note  1. LSZH and other material can be used as jacket according to the customer's demands. Product picture:Company introduction:HONGAN GROUP  is located in Shandong China.  We Specialized in producing  optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related  equipments.   Our products have passed  ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.Advanced production lines:Our certificates:FAQ  1. Are you the real factory?Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.2. What is the conductor material?All the cable conductor is made of oxygen-free bare copper. If you need CCA, CCS or other material conductor, please tell the customer service staff.3.What is your main products?Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.4.What is your payment term?30% in advance, 70% before delivery.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
