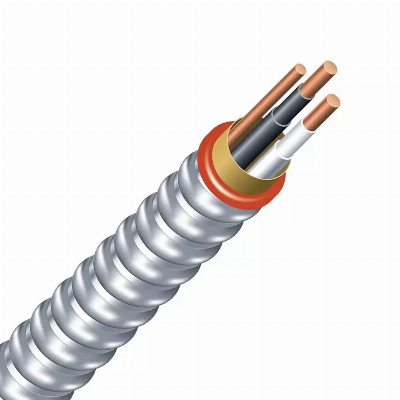

Aluminum Armoured Cable 600V Metal Clad AC90 Cable

  Product Description  Type AC90 XLPE 600V 90°C   DescriptionSolid Two, three or four copper conductors with low temperature XLPE insulation (RW90 XLPE) and bare copper bondingwire. Conductor assembly paper wrapped and covered with bare interlocked aluminum armor. Rated 600 volts.Temperature -40°C to +90°CApprovalsCSA Spec C22.2 No. 51-M89.ApplicationFor open and concealed wiring in dry locations only.For use in cable troughs and ventilated flexible cable waysin dry locations only. Minimum recommended installation temperature minus 40°C (with suitable handling procedures).Maximum conductor temperature 90°C. Approved for use with ceiling fixtures.  Applications:For exposed and concealed wiring in dry, locationsFor use in ventilated, non-ventilated and ladder-type cable trays in dry locationsRated at 90°C dry Standard:  CSA C22.2 No.51-14 Armoured CablesCSA C22.2 No. 2256 Wire and Cable Test MethodsCSA C22.2 No. 0.3 Test Methods for Electrical Wires and CablesFT4 - Flame Test- Vertical Tray Flame Test Structure:                                       Conductor: solid or stranded copperInsulation: Cross-linked Polyethylene (XLPE) Type RW90Bonding Conductor (Ground): bare solid or stranded copper conductorCable Assembly: Kraft Paper WrapArmour: Galvanized steel armour or AlA armour Prints on Cable:HT CABLES c(UL) E466697 12AWG 2C + 14AWG TYPE AC90 600V TYPE RW90 INSULATED CONDUCTOR2022/01       SizeConducto r typeGroundingconductorInsulation thicknessApprox.    Armour O.D.Approx.WeightReel lengthAWG-AWGmmmmKg/kmm14-2Solid140.7612170150/7514-3Solid140.7612.5200150/7512-2Solid140.7612.8203150/7512-3Solid140.7613.4245150/7510-2Solid120.7614261150/7510-3Solid120.7614.6324150/75     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
