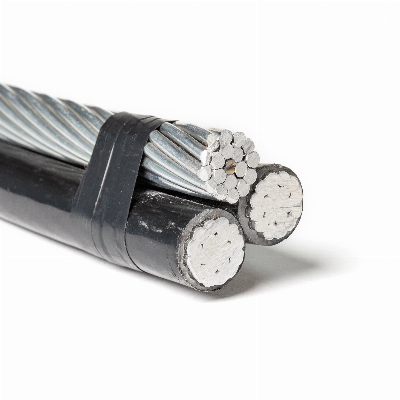

Product DescriptionThe cables are designed for aerial power lines and room-entrance wires with voltage up to and including 0.6/1KV.Used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. which improves the safety and reliance on electrified wire netting.SpecificationsStandard: National Standard IEC and ASTMRated Voltage: 0.6/1KV, 11KV, 33KV ConstructionPhase conductor: aluminum stranded(AAC)Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), aluminum conductor steel reinforced(ACSR)Insulation: XLPE or PETypeDuplex Service Drop, Triplex Service Drop, Quadruplex Service Drop a Duplex Service Drop Applications: To supply 120-volt aerial service for temporary service at construction sites, and outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum. b Triplex Service Drop Applications: To supply power from the utility's lines to the consumer`s Weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation. c Quadruplex Service Drop Applications: Used to supply 3-phase power, usually from a pole-mounted transformer to the use`s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.SpecificationDuplex Service Drop-Aluminum ConductorCodePhase ConductorBare Neutral MessengerWeight PerRating(Amps)Name1000 ft(lbs) SizeStrandInsulationSize*StrandBreakingXLPPOLYXLPPOLY AWGthicknessAWGstrength (MLS) (lbs)AACPekingese6solid4567/w56363.561.77070Collie67/w4567/w56366.863.17070Dachshund4solid4547/w88195.593.49090Spaniel47/w4547/w88110195.49090Doberman27/w4527/w1,350153145.7120120Malemute1/019/w601/07/w1,990243234.2160160ACSR NEUTRAL-MESSENGERSetter6solid456'6/11.197573.27070Shepherd67/w456'6/21.1978.374.67070Eskimo4solid454'6/31.86114111.69090Terrier47/w454'6/41.86119113.69090Chow27/w452'6/52.85182174.7120120Bull1/019/w601/0'6/64.38289280.31601606201 ALLOY NEUTRAL-MESSENGERChihuahua6solid4567/w1,11067.665.87070Vizsla67/w4567/w1,11070.967.27070Harrier4solid4547/w1,76010299.99090Whippet47/w4547/w1,760107101.99090Schnauzer27/w4527/w2,800163156.2120120Heeler1/019/w601/07/w4,460259250.8160160 Triplex Service Drop-Aluminum ConductorCodePhase ConductorBare Neutral MessengerWeight PerAmpacity (Amps)Name1000 ft(lbs) SizeStrandingInsulationSizeStrandingBreakingXLPPOLYXLPPOLY AWGthicknessAWGstrength (MLS) (lbs)6201 ALLOY NEUTRAL-MESSENGERMinex6solid45671,110106.6102.98570Hippa67/w45671,110113.2105.78570Prawn4solid45471,760158.4154.111590Barnacles47/w45471,760168.3158.211590Shrimp27/w45272,800253.7239.7150120Gammarus1/07/w601/074,460411.7386205160Leda1/019/w601/074,460402.7386205160Dungenese2/07/w602/075,390506.8476.3235185Cyclops2/019/w602/075,390495.3476.3235185Flustra3/019/w603/076,790611.4589.1275215Lepas4/019/w604/078,560757.1730.53152456201 ALLOY REDUCED NEUTRAL-MESSENGERArtemia4solid45671,110141.4137.111590Crab47/w45671,110151.3141.211590Solaster27/w45471,760226.6212.6150120Sandcrab1/07/w60272,800368.8343.1205160Echinus1/019/w60272,800358.8343.1205160Crayfish2/07/w60173,530452.6422.5235185Sipho2/019/w60173,530441422.5235185Fulgar3/019/w601/074,460543.4521.1275215Arca4/019/w602/075,390671.2644.6315245AAC NEUTRAL-MESSENGERHaiotis6solid4567563102.598.88570Patella67/w4567563109.1101.68570Fusus4solid4547881151.9147.611590Oyster47/w4547881161.8151.711590Clam27/w45271,350243.2229.2150120Murex1/07/w601/071,990395.1369.4205160Purpura1/019/w601/071,990386.1369.4205160Nassa2/07/w602/072,510485.8455.3235185Melita3/019/w603/0193,310585.2562.9275215Portunus4/019/w604/0194,020723.9697.3315245Nannynose336.419/w80336196,14611601118420325WITH FULL SIZE ACSR MESSENGERPaludina6solid456'6/11,1901141138570Voluta67/w456'6/11,1901201138570Whelk4solid454'6/11,86016916511590Periwinkle47/w454'6/11,86017617211590Conch27/w452'6/12,850267261150120Neritina1/07/w601/0'6/14,380530419205160Cenia1/019/w601/0'6/14,380426416205160Runcina2/07/w602/0'6/15,310530519235185Triton2/019/w602/0'6/15,310526514235185Cherrystone3/07/w603/0'6/16,620656643250200Mursia3/019/w603/0'6/16,620650638250200Razor4/07/w604/0'6/18,350814799315245Zuzara4/019/w604/0'6/18,350805792315245Limpet336.419/w80336'6/18,68012091167420325WITH ACSR REDUCED SIZE MESSENGERScallop4Solid456'6/11,19014814411590Strombus47/w456'6/11,19015814811590Cockle27/ w454'6/11,860233227150120Janthina1/07/ w602'6/12,850376365205160Ranella1/019/ w602'6/12,850372362205160Quadruplex Service Drop-Aluminum ConductorCodePhase ConductorBare Neutral MessengerWeight PerRating(Amps)Name1000 ft(lbs) SizeStrandInsulationSizeStrandBreakingXLPPOLYXLPPOLY AWGthicknessAWGstrength (MLS) (lbs)AAC NEUTRAL-MESSENGERClydesdale4Solid4547881208201.810080Pinto47/w4547881223207.910080Mustang27/w45271,350333312.6135105Crio
