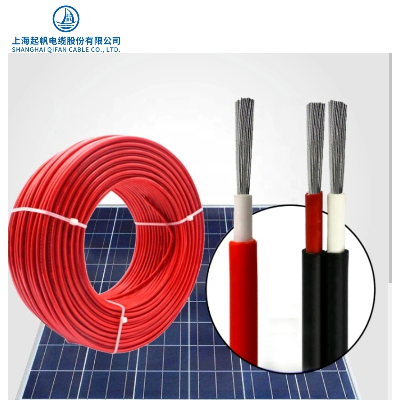

Solar PV Wire DC Wire for Solar

Product Description solar pv wire dc wire for solarApplication:Solar cables  applies to flexible single-core cables (cords) for use at the DC-side of photovoltaic systems with a maximum permissible voltage of DC 1.8 kV (conductor/conductor, non-earthed system).The cables are suitable for use in safety class II. It is permitted to connect these cables as multiple-construction. The cables are intended to operate at ambient temperature until 90°C Construction:1.    Conductor - Class 5 tinned annealed stranded copper conductor2.    Insulation - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)3.    Outer sheath - Low smoke halogen-free electron-beam cross-linked compounds(XLPO) Cross Section:1 core: 1.5~35mm2 Temperature characteristics:                    Working temperature: -40ºC~90ºCMax. temperature at conductor: 120ºCShort Circuit temperature: 200ºC (at max.5sec)                             Electrical Characteristics:Rated Voltage:                AC U0/U:0.6/1kV                   DC Max. : 1800V (conductor/conductor, non-earthed system)               Spark Test Voltage: 6000 V AC              5min Test Voltage: 6500V  Chemical Features:Weather / UV ResistanceResistance mineral oil Color:Insulation: Black or White or as customer's requirementOuter sheath: Red or Black or as customer's requirement Standard:TUV 2PfG 1169IEC60228, IEC60332EN50305, EN50395, EN50396 Detailed Photos ------Our Feature------Imported equipment with experienced technical teamThe company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from GermanyComplete certification systemQifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.Perfect Production systemQifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.Perfect Sales service systemQifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.Specification 6.TECHNICAL PARAMETER DATA:No.of cores x Nominal section areaNominal Construction of conductorNominalInsulationthicknessNominalSheath thicknessNominalOverall diameterNominalCable weightMax.Resistance of conductorat 20ºCCurrent Carrying Capacity  PV Single core   Solar cable No.X mm²No.X mmmmmmmmkg/km
