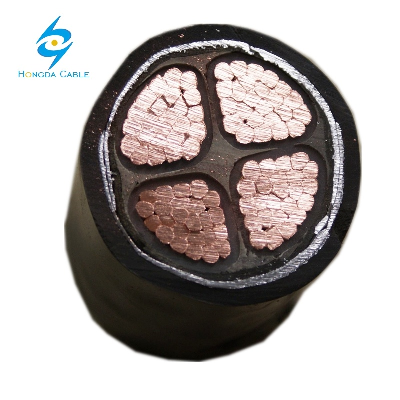

Yjv Yjlv Yjv22 Yjlv22 Yjv32 Yjlv32 4X240mm2 Cu/XLPE/PVC Power Cable

yjv yjlv yjv22 yjlv22 yjv32 yjlv32 4x240mm2 cu xlpe pvc power cableDESCRIPTIONCONSTRUCTIONConductor: Plain Annealed Copper, Class 2 Stranded Circular, Compacted or SectoredInsulation: Cross-linked Polyethylene (XLPE)  Compound Insulation Color : 4 Cores: Brown,  Black, Grey,Blue or Red, Yellow, Blue, BlackAssembly : Cores cabled together with filler and covered with Polyester (PET) TapeOuter Sheath: Polyvinyl Chloride (PVC) Compound Type ST 2 Outer Sheath Color : BlackELECTRICAL CHARACTERISTICSOperating Voltage, Uo/U :   0.6/1KVOperating Temperature : -15ºC to 90ºCFinal Short Circuit Temperature : 250ºCTest Voltage : 3.5kV for 5 minutesCurrent Carrying Capacity  Clipped Direct (Ref Method C) One 3 or 4-Core Cable, 3-Phase A.C : 73AIn free air or on a perforated cable tray etc,  horizontal or vertical (Ref method E) One 3 or 4-Core Cable, 3-Phase A.C : 78ADirect in Ground or in ducting in ground, in or around building (Ref method D) One 3 or 4-Core Cable, 3-Phase A.C : 58AREFERENCE STANDARDDesign Specification: IEC60502-1Conductor: IEC60228, BS EN60228Flame Retardancy: IEC60332-1, BS EN60332-1INSTALLATION REFERENCEMinimum Bending Radius(mm): 8 x cable overall diameterMax. Pulling Tension (N/mm2) : 70ºCTypeDescriptionVV  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC sheath, low voltage power cableVLV  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC sheath, low voltage power cableVV22  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableVLV22  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableVV32  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableVLV32  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableYJV  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC sheath, low voltage power cableYJLV  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC sheath, low voltage power cableYJV22  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableYJLV22  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableYJV32  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableYJLV32  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableYJY  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE sheath, low voltage power cableYJLY  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE sheath, low voltage power cableYJY23  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE inner sheath, Galvanized steel tape armored, PE outer sheath, low voltage power cableYJLY23  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE inner sheath, Galvanized steel tape armored, PE outer sheath, low voltage power cableYJY33  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE inner sheath, Galvanized steel wire armored, PE outer sheath, low voltage power cableYJLY33  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE inner sheath, Galvanized steel wire armored, PE outer sheath, low voltage power cableWDZ-YJE  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant sheath, low voltage power cableWDZ-YJLE  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant sheath, low voltage power cableWDZ-YJE23  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel tape armored, low smoke zero halogen flame retardant outer sheath, low voltage power cableWDZ-YJLE23  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel tape armored, low smoke zero halogen flame retardant outer sheath, low voltage power cableWDZ-YJE33  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel wire armored, low smoke zero halogen flame retardant outer sheath, low voltage power cableWDZ-YJLE33  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel wire armored, low smoke zero halogen flame retardant outer sheath, low voltage power cableNote :Conductor Shape1.5 - 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape16 sqmm supplied in non compacted circular stranded (rm) conductor shape25 - 300 sqmm supplied in compacted circular stranded (cm) conductor shapeStandard Packing1.5 - 50 sqmm supplied in wood
