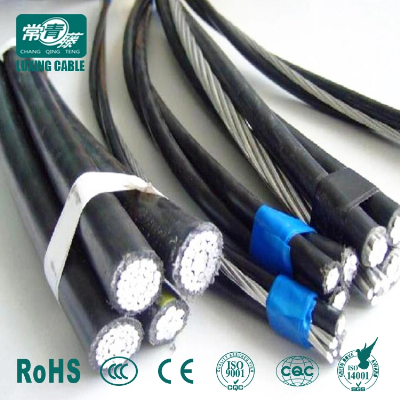

0.6/1kv Al XLPE/Aerial Bundled/ABC Cable for Aluminum

1.1kv,10kvinsulated overhead lineThis product is suitable for AC rated voltage (Uo / U) 1/10kv power distribution grid system. 1kv insulated overhead line adopt GB/T12527-2008 & GB/T1179-2008 standard. 10kv insulated overhead line adopt GB/T14049-2008 & GB/T1179-2008 standard. 2.Type, name,laying occasionTypeLaying occasionCopper coreAluminum coreSteel core(intensive)aluminum stranded coreJKVJKLV(BLVW)JKLGV(BLVWG or BLGVW)Aerial fixed laying lines or service wire,only for 0.6/1kv line.JKYJJKLYJJKLGYJAerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees.JKYJ/QJKLYJ/QJKLGYJ/QAerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact  temporary with trees.JKYJ/JJKLYJ/JJKLGYJ/JAerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees,allow low laying.  3.Operating characteristic1)rated voltage 0.6/1kv,10kv 2)max permissible continuous operating temperature of conductor:PVC insulated ≤70ºC.XLPE insulated ≤90ºC. 3)during short circuit(lasting less than 5s),the maximum temperature of the cable:PVC insulated is 160ºC;XLPE insulated should not exceed 250ºC. 4)laying temperature of cable should not less than -20ºC,cable should be preheated when below -20ºC. 5)bending radius: -0.6/1kv D
