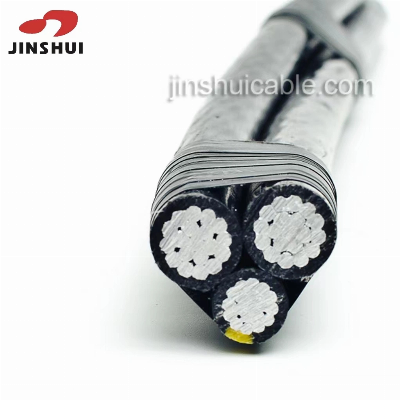

Triplex Cable Aluminum Conductor Overhead AAC+ACSR Cable

Product DescriptionApplication:The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.Specification:Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core; Phase conductor is insulated by XLPE or HDPE or PVC.Standards:IEC60502, NF C33-209, GB 12527-90Rated voltage: 0.6/1kVRelative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.We can also manufacture ABC cable according to customer's special requirements.The basic construction is as follows:3 cores consisting of standard aluminium conductors, insulated with XLPE insulation+ One sheath lighting aluminium conductor with XLPE insulation(optional)+ One messenger Al-alloy conductor (bare or covered)The messenger conductor can be of galvanised steel wire also. ABC Cable BS 7870 No. of Core& SizePhase CoreNeutral CoreComplete CableNo. &Section AreaNo. of wireDia. of Conductor(Approx.)InsulationThicknessNo. &Section AreaNo. of WireDia. of Conductor(Approx.)InsulationThicknessOverall Diameter(Approx.)Weight(Approx.)mm2mm2No.mmmmmm2No.mmmmmmkg/km1x251x2576.0 1.3 ----8.6 961x351x3577.0 1.3 ----9.6 1261x501x50198.4 1.5 ----11.4 1831x701x701910.0 1.5 ----13.0 2361x951x951911.6 1.7 ----15.0 3231x1201x1201913.0 1.7 ----16.4 3992x251x2576.0 1.3 1x2576.0 1.3 17.2 1922x351x3577.0 1.3 1x3577.0 1.3 19.2 2522x501x50198.4 1.5 1x50198.4 1.5 22.8 365 2x701x701910.0 1.5 1x701910.0 1.5 26.0 4722x951x951911.6 1.7 1x951911.6 1.7 30.0 6452x1201x1201913.0 1.7 1x1201913.0 1.7 32.8 7983x252x2576.0 1.3 1x2576.0 1.3 18.5 2883x352x3577.0 1.3 1x3577.0 1.3 20.6 3783x502x50198.4 1.5 1x50198.4 1.5 24.5 5483x702x701910.0 1.5 1x701910.0 1.5 28.0 7083x952x951911.6 1.7 1x951911.6 1.7 32.3 9683x1202x1201913.0 1.7 1x1201913.0 1.7 35.3 11964x253x2576.0 1.3 1x2576.0 1.3 20.7 3844x353x3577.0 1.3 1x3577.0 1.3 23.1 5044x503x50198.4 1.5 1x50198.4 1.5 27.5 7314x703x701910.0 1.5 1x701910.0 1.5 31.4 943 4x953x951911.6 1.7 1x951911.6 1.7 36.2 12904x1203x1201913.0 1.7 1x1201913.0 1.7 39.6 15955x254x2576.0 1.3 1x2576.0 1.3 23.2 4805x354x3577.0 1.3 1x3577.0 1.3 25.9 6305x504x50198.4 1.5 1x50198.4 1.5 30.8 9145x704x701910.0 1.5 1x701910.0 1.5 35.1 11795x954x951911.6 1.7 1x951911.6 1.7 40.5 16135x1204x1201913.0 1.7 1x1201913.0 1.7 44.3 1993  ABC CABLE AS/NZS 3560.1 No. of Core& SizePhase CoreNeutral CoreComplete CableNo. &Section AreaNo. of WireDia. of Conductor(Approx.)InsulationThicknessNo. & Section AreaNo. of WireDia. of Conductor(Approx.)InsulationThicknessOverall Dia.(Approx.)Weight(Approx.)mm2mm2No.mmmmmm2No.mmmmmmkg/km2x161x1674.7 1.3 1x1674.7 1.3 14.6 1324x163x1674.7 1.3 1x1674.7 1.3 17.6 2632x251x2576.0 1.3 1x2576.0 1.3 17.2 1893x252x2576.0 1.3 1x2576.0 1.3 18.5 2834x253x2576.0 1.3 1x2576.0 1.3 20.8 3782x351x3577.0 1.3 1x3577.0 1.3 19.2 2493x352x3577.0 1.3 1x3577.0 1.3 20.7 3734x353x3577.0 1.3 1x3577.0 1.3 23.2 4972x501x5078.1 1.5 1x5078.1 1.5 22.2 334 3x502x5078.1 1.5 1x5078.1 1.5 23.9 5014x503x5078.1 1.5 1x5078.1 1.5 26.8 6684x703x701910.0 1.5 1x701910.0 1.5 31.4 9332x951x951911.6 1.7 1x951911.6 1.7 30.0 6384x953x951911.6 1.7 1x951911.6 1.7 36.2 12764x1203x1201913.0 1.7 1x1201913.0 1.7 39.6 15794x1503x1501914.6 1.7 1x1501914.6 1.7 43.5 1883  ABC Cable GB 12527 No. of Core& SizePhase CoreNeutral CoreComplete CableNo. andSection AreaNo. of WireDia.of Conductor(Approx.)InsulationThicknessNo. andSection AreaNo. of WireDia. of Conductor(Approx.)Overall Dia.(Approx.)Weight(Approx.)mm2mm2No.mmmmmm2No.mmmmkg/km1x101x1074.05 1.0 ---6.1431x161x1674.80 1.2 ---7.2641x251x2576.00 1.2 ---8.4921x351x3577.00 1.4 ---9.81271x501x5078.10 1.4 ---11.11651x701x701910.00 1.4 ---12.82301x951x951911.60 1.6 ---14.83151x1201x1201913.00 1.6 ---16.23901x1501x1501914.60 1.8 ---18.24761x1851x1853716.20 2.0 ---20.26092x102x1074.00 1.0 ---12.2852x162x1674.80 1.2 ---14.41282x252x2576.00 1.2 ---16.81842x352x3577.00 1.4 ---19.62552x502x5078.10 1.4 ---22.2329 2x702x701910.00 1.4 ---25.64593x103x1074.00 1.0 ---13.11283x163x1674.80 1.2 ---17.41923x253x2576.00 1.2 ---20.32763x353x3577.00 1.4 ---21.13823x503x5078.10 1.4 ---23.94943x703x701910.00 1.4 ---27.66883x953x951911.60 1.6 ---31.99433x1203x1201913.00 1.6 ---34.911704x104x1074.00 1.0 ---14.61714x164x1674.80 1.2 ---17.42564x254x2576.00 1.2 ---20.33684x354x3577.00 1.4 ---23.75094x504x5078.10 1.4 ---26.86594x704x701910.00 1.4 ---30.9917 4x954x951911.60 1.6 ---35.812584x1204x1201913.00 1.6 ---39.115591x16+161x1674.80 1.2 1x1675.10 12.31081x25+251x2576.00 1.2 1x2576.30 14.71581x35+351x3577.00 1.4 1x3577.50 17.32211x50+501x5078.40 1.4 1x5079.00 20.13002x16+162x1674.80 1.2 1x1675.10 15.51722x25+252x2576.00 1.2 1x2576.30 18.12502x35+352x3577.00 1.4 1x3577.50 21.13482x50+502x5078.30 1.4 1x5079.00 22.44643x16+163x1674.80 1.2 1x1675.10 17.42353x25+253x2576.00 1.2 1x2576.30 20.33423x3
