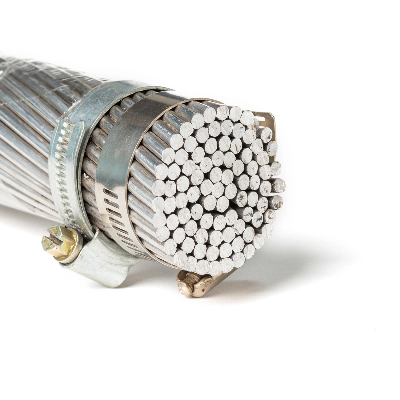

LV ASTM Stranded ACSR, AAC, AAAC Overhead Conductors

AAC, AAAC, ACSR, AACSR&ACAR conductor widely used in power transmission lines with various voltage levels. Since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist. 1. Specification:(1) all aluminium conductor (AAC) (2) all aluminimum alloy conductor(AAAC) (3) aluminum conductor steel reinforced (ACSR) (4) anti-corrosion type ACSR (5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW) (6)rear earth aluminimum conductor steel reinforced(ACSR/RE) (7)aluminimum conductor aluminimum alloy reinforced(ACAR) 2. Elative manufacturing standards:1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182. 2). Specification: ACSR is composed by bare concentric-lay-stranded galvanized steel wire(s) with aluminum wires surrounded by one or more layers of helically. Greased ACSR can also be supplied. 3). Application: ACSR is widely used in overhead electric power transmission and distribution lines with Various voltage levels. All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228 (AAAC) Conductor as per ASTM-B-399-1992 (AAAC) Conductor as per BS-3242-1970 (AAAC) Conductor IS: 398-IV-1994 (ACSR) as per ASTM-B-233-1992 (AAC) as per BS-215-1-1970 (AAC) as per IS-398-1: 1976 (AAC) as per ASTM-B-231-1990 (ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992 (ACSR) BS-215-II-1970 (AACSR) as per IEC-1089-1191 AAC(All aluminum conductor) are suited for overhead power line. We can supply this conductor according to different recognized standards, distribution and transmission lines for distributing power. Notes: Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions. Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq. Ft sun, 0.5 coefficients of emissivity and absorption. NominalAlummm 2Number/DiametermmCalculation Area  mm 2Approx.Overall Diametermm Max. D. C.ResistanceAt 20  degrees Celsius≤ Ω /km Nominal breaking loadKN Weightkg/km Al Steel Al Steel Total106/1.501/1.5010.621.7712.394.502.7064.1443206/2.111/2.1120.943.4924.436.331.3687.8885256/2.361/2.3626.254.3730.627.081.0939.61106306/2.591/2.5931.615.2736.887.770.907711.45128356/2.791/2.7936.666.1142.708.370.782213.20149406/3.001/3.0042.417.0749.489.000.676615.20172506/3.351/3.3552.888.8261.7010.050.542618.35214606/3.661/3.6663.1810.5373.7110.980.454521.802556012/2.597/2.5963.2736.93100.3012.950.456753.00465706/3.991/3.9974.8212.4787.2911.970.382525.703027012/2.797/2.7973.3742.80116.1713.950.393661.20538756/4.101/4.1079.2013.2092.4012.300.362227.20320806/4.221/4.2283.8813.9897.8612.660.341928.80339906/4.501/4.5095.4015.90111.3013.500.300732.703861006/4.721/4.72105.0017.50122.5014.160.273336.004251006/4.727/1.57105.0013.50118.5014.150.273332.703941007/4.397/1.93105.8020.44126.2014.570.271240.904501256/5.287/1.75131.3016.80148.1015.810.218440.7049212526/2.547/1.91132.1020.10152.2015.890.218746.4052212518/3.051/3.05130.307.25137.5015.250.218929.8041912530/2.367/2.36131.1030.60161.7016.520.220258.0060215030/2.597/2.59158.0036.90194.9018.130.182869.2072615018/3.351/3.35158.708.80167.5016.570.181535.7050617530/2.797/2.79183.4042.80226.2019.530.157679.8084217518/3.611/3.61184.2010.30194.5018.050.156341.1058720030/3.007/3.00212.0049.50261.5021.000.136392.2597422530/3.187/3.18238.5055.60294.2022.260.1212109.60109525030/3.357/3.35264.0061.60325.6023.450.1093111.10121330030/3.717/3.71324.3075.70400.0025.970.0891135.70148935030/3.997/3.99374.1087.30461.4027.930.07704155.90171835054/2.977/2.97373.1048.40421.5026.730.07727118.20141135054/3.007/3.00381.8049.50431.3027.000.07573120.90144420018/3.861/3.86210.6011.70222.3019.300.01367046.5567140030/4.277/4.27429.30100.20529.5029.890.06726178.50197140054/3.187/3.18428.9055.30484.5028.620.06740131.90162145030/4.507/4.50477.00111.30588.3031.500.06056198.20219045054/3.357/3.35475.2061.60536.8030.150.06073145.70179750054/3.537/3.53528.7068.50597.2031.770.05470161.101999Company ProfileZhengzhou Jinshui Industry & Commerce Co.,Ltd is a professional cable manufacturer and exporter with more than 20 years experience, located in Zhengzhou, China. Products mainly include bare conductor, aerial bundled cable(ABC), building wire, XLPE insulated Power Cable, coaxial cable, etc. With high-quality products and professional service, we have gained the trust from many customers and established long-term business relationship with them. Products have been exported to more than 30 countries. Exhibition Our Factory FAQ 1.Are you a manufacturer? Yes, we are the manufacturer. 2.What are your main products? Our products
