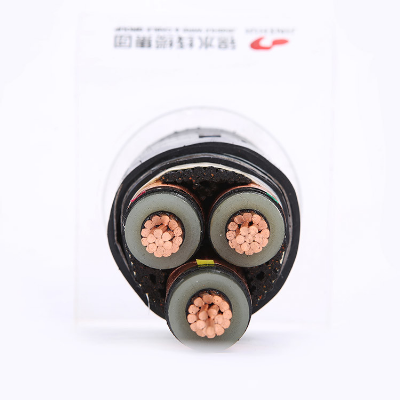

XLPE Aluminum Wire Armoured Power Cable for PVC Cable

Application:High-voltage cables generally consist of one or three conductors, insulation materials, and a sheath structure. High-voltage cables and low-voltage cables differ in that they have an additional inner layer in the insulation jacket to control the electric field around the conductor. For circuits operating at relatively high voltages between conductors, a conductor shield can surround each insulated conductor. In this way, the electrical stress of the cable insulation can be balanced, and unnecessary losses of the cable can be reduced.Construction:Voltage: 35kv-220kvConductor: Class 2 copper or aluminum conductor, compacted or segment strand to BS EN 60228 (previously BS 6360)Conductor Screen: Extruded semi-conductive XLPE (Cross-Linked Polyethylene)Cross-section: 150-800mm2Insulation: XLPE(Cross-Linked Polyethylene)Insulation Screen: Semi-conductive XLPE (Cross-Linked Polyethylene)Separator: Water swellable semi-conductive tapeScreen: Copper wire screen, with a counter helix of copper tapeSeparator: Water swellable tapeSheath: HDPE (High Density Polyethylene)(To be specified at time of order. Other options available)Maximum Conductor Temperature In Service: (Operating temperature-continuous operation) +90 °CShort Circuit Temperature: +250 °COperating Temperature: -30 °C to 90 °CName and Type of XLPE Insulated Power CableTypeTypeNameCu CoreAl Core YJV(YJY)YJLV(YJLY)XLPE Insulated,PVC(PE) Sheathed Power CableYJV22(YJV23)YJLV22(YJLY23)XLPE Insulated,Steel Tape Armoured,PVC(PE) Sheathed Power CableYJV32(YJLV33)YJLV32(YJLY33)XLPE Insulated,Fine Steel Wire Armoured,PVC(PE) Sheathed Power CableYJV42(YJLV43)YJLV42(YJLY43)XLPE Insulated,Thick Steel Wire Armoured,PVC(PE) Sheathed Power CableZR-YJV(ZR-YJY)ZR-YJLV(ZR-YJLY)XLPE Insulated,PVC(PE) Sheathed Flame-retardant Power CableZR-YJV22(ZR-YJY23)ZR-YJLV22(ZR-YJLY23)XLPE Insulated,Steel Tape Armoured,PVC(PE) Sheathed Flame-retardant Power CableZR-YJV32(ZR-YJY33)ZR-YJLV32(ZR-YJLY33)XLPE Insulated,Fine Steel Wire Armoured,PVC(PE) Sheathed Flame-retardant Power CableZR-YJV42(ZR-YJY43)ZR-YJLV42(ZR-YJLY43)XLPE Insulated,Thick Steel Wire Armoured,PVC(PE) Sheathed Flame-retardant Power CableSingle Core Copper Conductor XLPE Insulated Power CableNominal Cross-Section(mm2)Over-Diameter(mm)Nominal Thickness of Insulation(mm)Size of Armour(mm)Approx.Overrall Diameter& Weight SteelTapeFine Steel WireThick Steel WireYJVYJYYJV22YJV23YJV32YJV33YJV42YJV43Recommending Current Rating(A) Layer x ThicknessDia.(mm)Dia.(mm)Over-Dia.(mm)Weight(kg/km)Over-Dia.(mm)Weight(kg/km)Over-Dia.(mm)Weight(kg/km)Over-Dia.(mm)Weight(kg/km)Over-Dia.(mm)Weight(kg/km)Over-Dia.(mm)Weight(kg/km)Over-Dia.(mm)Weight(kg/km)Over-Dia.(mm)Weight(kg/km)InGroundIn Air1.51.380.72x0.31.64.05.7445.73614.933414.930216.959416.955821.7136621.7131845322.51.780.72x0.31.64.06.1566.14814.934114.930916.960116.956521.7137321.71325594242.250.72x0.31.64.06.5736.56414.935414.932216.961416.957721.7138621.71337775662.760.72x0.31.64.07.0957.08514.936514.933316.962516.958821.7139721.713489770103.570.72x0.31.64.07.91387.912614.939514.936316.965516.961921.7142721.7137913097164.50.72x0.31.64.08.81988.818415.044415.041117.070217.066522.6160222.61552170125256.300.92x0.31.64.011.030911.029015.452315.449017.477817.474024.8184424.81788220165357.300.92x0.31.64.012.040912.038916.464116.460518.491918.487825.8206125.82002265200508.301.02x0.31.64.013.256013.253817.681317.677519.6111119.6106727.0233027.0226932.2457010.001.12x0.31.64.015.176415.173819.5105019.5100721.5139421.5134629.1267429.126042953059511.601.12x0.31.64.016.9101616.998521.1132321.1127623.1169923.1164630.7304230.7296847537512013.001.22x0.31.64.018.5126518.5123022.7159822.7154724.7199124.7193532.5353232.5344954543515014.61.42x0.31.64.020.7157920.7153724.7193724.7188126.7237526.7231434.5396734.5387961050018516.21.62x0.31.64.022.8193222.8188626.8232526.8226428.8179128.8272536.8446536.8436669558024018.61.72x0.31.64.025.6248525.6243029.6291429.6285231.6344531.6336939.6526539.6515381068530020.801.82x0.31.64.028.2308328.2301932.0254932.0347134.2412634.2433942.2610842.2598391079540024.302.02x0.32.04.032.3408232.3400436.3462936.3453139.3557039.3545946.3747346.37330105093050028.802.22x0.52.04.037.2495137.2485542.2584842.2572944.3664744.3651854.4872151.48556119010863033.02.42x0.52.54.042.2645742.2633847.37747647.3733450.4879850.4864156.21069156.2105021350125080037.292.62x0.52.54.047.1819047.1805052.3933152.3916555.61079055.61060361.41282661.41260315201440100041.802.82x0.52.54.052.21023052.21006857.71153357.71133760.91313560.91282266.51535066.51510016901630  Company ProfileZhengzhou Jinshui Industry & Commerce Co.,Ltd is a professional cable manufacturer and exporter with more than 20 years experience, located in Zhengzhou, China. Products mainly include bare conductor, aerial bundled cable(ABC), building wire, XLPE insulated Power Cable, coaxial cable, etc. With high-quality products and professional service, we have gained the trust from many customers and established long-term bus
