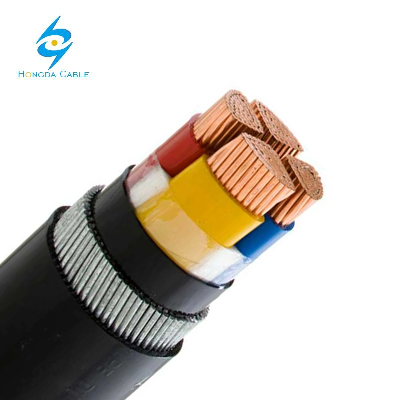

IEC 60502 Cu XLPE/PVC Insulated Swa PVC/PE Sheath Power Cable

 SWA/Cu/Al Conductor XLPE/PVC Insulated PVC/PE Sheath IEC 60502 Power CableIEC 60502 Cu XLPE/PVC Insulated Swa PVC/PE Sheath Power CableIEC 60502 Cable IEC60502-1 cable power Cable CU/AL conductor  XLPE/PVC insulated PVC/PE sheath International Standard IEC 60502-1 from the International Electrotechnical Commission sets out the specification for power cables with extruded insulation with a voltage rating of 1kV to 30kV. This standard also covers their accessories. The cables must have an extruded solid insulation and may contain longitudinal water-blocking properties such as swellable tapes and powders if the installation conditions demand it.   Many of the cables manufactured in accordance with IEC 60502 are designed for local power distribution, and for power and auxiliary controls. Where additional mechanical protection is provided, the cables are suitable for installation in masonry and concrete. The water-blocking properties are important to prevent water ingress when used in wet conditions. IEC60502-2 cable  It should be noted that IEC 60502-2 excludes cables for special conditions such as those manufactured for use in overhead lines, mining, nuclear power plants, marine and submarine applications. Where this is the case, technical specifications refer to cables being manufactured 'Generally to IEC 60502-2'. This Standard is divided into the following parts: PartsVoltage Rating11kV to 3kV26kV to 30kV3Reserved for future development4Test requirements on accessories for cables with a voltage rating from 6kV to 30kVScope of IEC 60502-1 Part 1 of this international Standard specified the construction, dimensions and test requirements of cables with extruded solid insulation with a rated voltage ranging between 1kV and 3kV for fixed installations such as distribution networks or industrial installations. Some of the cables covered by IEC 60502 have flame spread-reducing or Low Smoke Zero Halogen (LSZH) properties when exposed to fire. IEC 60502-1 Systems categories CategoriesOperating conditionsASystems in which any phase conductor that comes in contact with earth or an earth conductor is disconnected from the system within 1 minuteBSystems which, under fault conditions, are operated for a short time with one phase earthed (not exceeding 8hrs on any occasion and no more than 125hrs per annum)CAll systems which do not fall into category A or BIEC 60502-1 Cable properties Insulated compoundsThermoplastic - intended for cables with voltage rating smaller or equal to 3kVPolyvinly Chloride (PVC)ThermosettingEthylene Propylene Rubber or similar (EPR or EPDM)High modulus or hard grade ethylene propylene rubber (HEPR)Cross-linked Polyethylene (XLPE)  Sheathing compoundsThermoplasticPolyvinyl Chloride (PVC)Polyethylene (PE)Halogen-FreeElastomericPolychloropreneChlorosulphonated polyethylenePolymers similar to above  ConductorsClass 1 or Class 2PlainMetal-coated annealed copperPlain aluminiumAluminium alloyClass 5PlainMetal-coated copper according to IEC 60228Some cables meeting the requirements of IEC 60502 benefit from armoured layers, making them able to withstand a higher degree of mechanical stress than comparative sized unarmoured cables. Various types of armour are specified, such as concentric copper wire screens and/or helically wound copper tape as required in the N2XCH cable.   Code-Designation for Power Cables with PVC or XLPE InsulationDesignIdentification of DesignExplanationsConductorNAccording to VDE Standard(No abbreviation for copper conductor)AAluminum conductorsYInsulation of thermoplastic Polyvinyl chloride (PVC)2XInsulation cross-linked Polyethylene (XLPE)Concentric Conductor, ShieldingCConcentric conductors of copper wires and copper tape, helically woundedCWConcentric conductors of copper wires in wave conal formation and and copper tape, helically woundedCEConcentric conductors of copper wires and copper tape over each individual conductor, helically woundedShieldingSShielding of copper wires and copper tape, helically woundedSEShielding of copper wires and copper tape over each individual conductor, helically wounded(F)Longitudinally water-proof shieldingArmorBArmor of steel tapeFArmor of galvanized flat steel wiresGCounter helix of galvanized steel tapeJacketKLead jacketOuter JacketYPVC jacket2YPE jacketCable for U0/U 0.6/1 kV are additionally designated with -JCables with green-yellow (green-natural) conductor are marked with protective conductor-OCables without green-yellow (green-natural) conductor are marked without protective conductor  NMV cable according to DIN VDE 0276AAluminium (Al) conductor[blank]Copper (Cu) conductor2XCross-linked polyethylene (XLPE) insulationSScreen of copper wires and copper tape, helically woundSEScreen of copper wires and copper tape over each individual core, helically woundYPolyvinyl Chloride (PVC) sheath2YPolyethylene (PE) sheath(F)2YLongitudinal water tightness with PE sheath(FL)2YLongitudinal and transversal water tightness with Al/PE sheath Packaging
