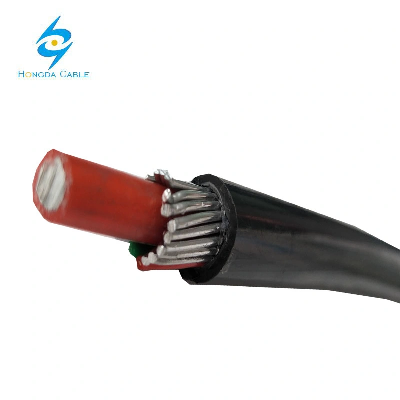

16mm2 Solid Aluminum Phase Core Aerial Service Concentric Cable

600/1000V SINGLE PHASE CONCENTRIC CABLES WITH STRANDED ALUMINIUMCONDUCTORS AND ALUMINIUM WIRE NEUTRAL CONDUCTORS  PHASE CONDUCTORCONCENTRICNEUTRALCONDUCTORNUMBER ANDAPPROX.DIAMETER OFWIRESLAYLENGTHSTHICKNESSOF OVERSHEATHAPPROX.OVERALLDIAMETEROF CABLEmax.d.c. CONDUCTORRESISTANCE PER 1000 m OF CABLEAT 20 ºCNominal area Number andapproximatediameter of wiresThicknesof insulationPhase Neutralmm2 mm mm mm minmmmaxmmmm mm WΩ WΩ 10 7/1.35 1.55 23/1.13 75 151 1.4 12.21 3.08 1.33516 7/1.70 1.55 26/1.13 84 167 1.4 13.34 1.91 1.80825 7/2.14 1.60 29/1.13 95 190 1.5 14.88 1.20 1.058 635 19/1.53 1.65 27/1.35 109 218 1.6 16.75 0.868 1.796 6   600/1000V SINGLE PHASE CONCENTRIC CABLES WITH STRANDED COPPERCONDUCTORS AND COPPER WIRE NEUTRAL CONDUCTORSPHASE CONDUCTORCONCENTRICNEUTRALCONDUCTORNUMBER ANDAPPROX.DIAMETER OFWIRESLAYLENGTHSTHICKNESSOF OVERSHEATHAPPROX.OVERALLDIAMETEROF CABLEmax.d.c. CONDUCTORRESISTANCE PER 1000 m OF CABLEAT 20 ºCNominal area Number andapproximatediameter of wiresThicknesof insulationPhase Neutralmm2 mm mm mm minmmmaxmmmm mm WΩ WΩ 4 7/0.85 1.55 24/0.85 59 118 1.4 9.75 4.61 1.3436 7/1.04 1.55 26/0.85 63 127 1.4 10.72 3.08 1.24010 7/1.35 1.55 29/0.85 71 142 1.4 11.73 1.83 1.15116 7/1.70 1.55 26/1.13 84 167 1.4 12.78 1.15 1.007 425 7/2.14 1.60 29/1.13 95 190 1.5 14.88 0.727 0.62935 19/1.53 1.65 28/1.35 109 218 1.6 16.75 0.524 0.473  ITEMSPECIFICATION (PARTICULARSUNIT  Data1Insulation VoltageV600/10002Conductor sizemm²163Phase Conductor materialN/AHard drawn Aluminium conductor-Single core  4Insulation MaterialN/AXLPE5Earth wire material typeN/ABare Aluminium conductor6Rip ChordN/ANylon7Reference StandardsN/ASANS 1507, NRS 063, IEC 60502/228 ESI 09-78Phase conductor Insulation thicknessmm1.0 Construction (Phase conductor)  9StructuremmSingle core10Insulation Thicknessmm1.011Reference Insulation O.Dmm7.1 Construction (Earth Wire)  12StructureNumbers1213Wire structureN/A12/1.7 Construction (Pilot/Communication Wires)  14Structuremm²4X0.515Reference Insulation O.Dmm1.1316Conductor materialN/ACopper17Insulation MaterialN/ALLPDE/XLPE18Number of conductorsNumbers4 Construction (Sheath)  19Nominal Thicknessmm1.620Reference Insulation O.Dmm14.521Sheath MaterialN/ALLPE Black UV stable/HQ PVC Insulation material colours  22Phase conductorN/ARed23Pilot wires (04)N/ARed, Green, White, Blue24SheathN/ABlack Performance (Electrical Characteristics)  25Phase Conductor - Maximum resistance at  ≤1.9126Earth Wires - - Maximum resistance at  ≤7.4027Pilot Wires - Maximum resistance at 20 ≤36    1.Phase conductor:Solidal  16sqm aluminum wire (diameter 4.50mm) 2.Insulation :XLPE (nominal thickness :1.0mm,color :red) 3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm ) 4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE 5.Neutral conductor :solidal aluminum wire (12/1.31) 6.Binder tape :non-hygroscopic tape 7.Ripcord 8.Sheathed:LLDPE (nominal thickness :1.6mm, color black  )     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
