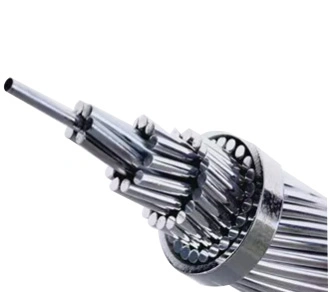

NFC 33-209 Stranded Aluminium Wire Conductor Aerial Bundled Cables

NFC 33-209 Stranded Aluminium Wire Conductor Aerial Bundled Cables Standard :NFC 33-209Construction :     1.Conductor:Stranded Aluminium wire conductor     2.Insulation:XLPE (cross-linked polyethylene)or PE (weather resistant)     3.Insulation Color: Black  Characteristic :    1.Temperature Rating:-20ºC up to +90ºC    2.Voltage Rating:600/1000V    3.Min inner bending radius:       Up to 25mm:4x overall diameter       Above 25mm:6x over diameter    4.Behaviour in fire: Flame retardant cable acc.to IEC60332-1                                                                                                                                                                         Application:   Aerial Bundled Cable(overhead cables)is applied for elelctric power distribution in low voltage metropolitan,suburban and rural networks,for public lighting and house connections.Laid on pillars and house fronts.Technical Parameters:No.of cores x Nominal section areaNominal Construction of conductorNominalInsulationthicknessNominalOverall diameterNominalCable weightMax.Resistance of conductorat 20ºCNo.X mm²No.X mmmmmmkg/km
