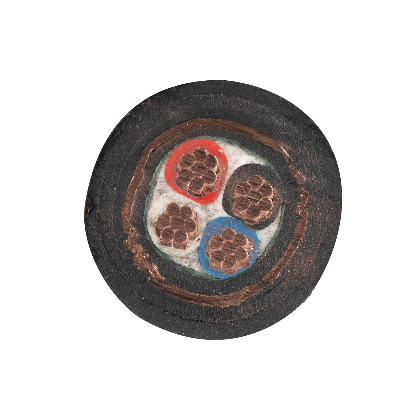

600/1000V 4X185mm2 YJV32 Armoured Power Cable XLPE Cable BS 5467Cable SelectionIt is essential that the type of cable ordered is suitable for its intended use. Cable choice will be based on a whole range of factors including installation specifications, relevant local regulations and the performance of appropriate cable types. It is therefore impossible to provide a conclusive guide to cable selection and we would advise you to contact us for our specialist advice on suitable designs to meet you specific cable needs.Cable structureConductorsConductors shall be of Copper or Aluminium, circular standed(Non-compacted or Compacted) or Shaped, Class 1 or Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid circular conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.InsulationXLPE material and thickness shall be as per IEC 60502-1 or BS 5467 rated for 90° C continuous operation.PVC material and thickness shall be as per IEC 60502-1 or BS 6346. PVC insulation Material-PVC/A as per IEC 60502 or TI1 as per BS EN 50363.PVC insulation as per SASO 1694 rated for 85° C continuous operation is also available on request.AssemblyTwo, Three Four or Five insulated conductors are laid-up together with non-hygroscopic fillers compatible with the insulation material.Inner sheathThe assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted if the outer shape of the cable remains practically circular.ArmourGalvanized Steel Wires applied helically over the bedding as per IEC 60502-1 or as per BS 5467, BS 6346. (Single core cables shall be Aluminium wire armoured)(SWA/AWA)Double Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502-1.(STA)Outer SheathOuter sheath will be extruded PVC/ST2 as per IEC 60502-1, Type 9 as per BS 7655. Special type of PVC sheathing material such as fire retardant PVC, anti-termite and anti-rodent PVC, ultraviolet PVC, Oil resistant PVC, etc. Are available on request also other special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE etc are available.Flame Performance of Cable SheathsCables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards. Standard:IEC,BS,VDE,AS/NZS,ICEA,JIS and so on,designing and manufacturing special power cable according to the other standards required by the customerType and Name:TypeDesignationApplicationsVVCopper conductor, PVC insulated, PVC sheathed power cableFor laying indoors, in tunnel or cable trench, unable to bear external mechanical forces.Single core cable is not allowed to lay in a magnetic duct.VLVAluminum conductor, PVC insulated, PVC sheathed power cableVYCopper conductor, PVC insulated, PE sheathed power cableVLYAluminum conductor, PVC insulated, PE sheathed power cableVV22Copper conductor, PVC insulated, steel tape armored, PVC sheathed power cableFor laying indoors, in a tunnel in cable trench, or direct in ground,able to bear external mechanical forces.The single-core cable is not allowed to lay in the magnetic duct.VLV22Aluminum conductor, PVC insulated, steel tape armored, PVC sheathed power cableVV23Copper conductor, PVC insulated, steel tape armored, PE sheathed power cableVLV23Aluminum conductor, PVC insulated, steel tape armored, PE sheathed power cableVV32Copper conductor, PVC insulated, steel wire armored, PVC sheathed power cableFor laying indoors, in tunnel cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.VLV32Aluminum conductor, PVC insulated, steel wire armored, PVC sheathed power cableVV33Copper conductor, PVC insulated, steel wire armored, PE sheathed power cableVLV33Aluminum conductor, PVC insulated, steel wire armored, PE sheathed power cableType and Name:TypeDesignationApplicationsYJVCopper conductor, XLPE insulated, PVC sheathed power cableFor laying indoors, in tunnel or cable trench, unable to bear external mechanical forces.Single core cable is not allowed to lay in a magnetic duct.YJLVAluminum conductor,XLPE insulated, PVC sheathed power cableYJYCopper conductor, XLPE insulated, PE sheathed power cableYJJLYAluminum conductor, XLPE insulated, PE sheathed power cableYJV22Copper conductor,XLPE insulated, steel tape armored, PVC sheathed power cableFor laying indoors, in a tunnel in cable trench, or direct in ground,able to bear external mechanical forces.The single-core cable is not allowed to lay in the magnetic duct.YJLV22Aluminum conductor, XLPE insulated, steel tape armored, PVC sheathed power cableYJV23Copper conductor, XLPE insulated, steel tape armored, PE sheathed power cableYJLV23Aluminum conductor, XLPE insulated, steel tape armored, PE sheathed power cableYJV32Copper conductor, XLPE insulated, steel w
