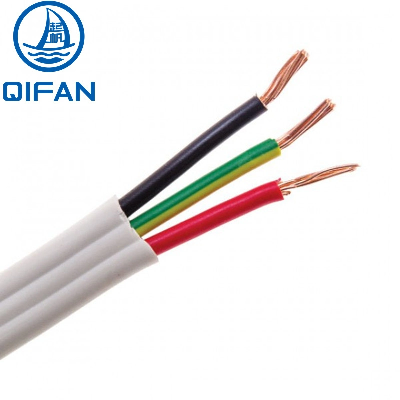

Australia and New Zealand Standard SAA Cable Flat TPS SDI Electric Wire

Australia and New Zealand Standard Flat TPS Electric WireApplication: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services Construction:1.    Conductor - Plain annealed class 5 flexible copper2.    Fire Resistant layer - Mica Tape3.    Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)4.    Filler - Flame retardant material5.    Binder Tape - Low smoke halogen-free flame retardant tape6.    Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP) Cross Section:2 core: 1.5~400mm23 core: 1.5~400mm24 core: 1.5~400mm25 core: 1.5~400mm22 core + earth: 1.5~400mm23 core + earth: 1.5~400mm24 core + earth: 1.5~400mm2 Temperature characteristics:                    Conductor operating temperature: -40ºC~110ºC                Min. temperatrue laying condition: 0ºC                  Electrical Characteristics:Rated voltage: 0.6/1 (1.2) kVHigh voltage test: 3.5kV / 5min Color:Insulation:2 core: Red, Black3 core: Red, White, Blue4 core: Red, White, Blue, Black 5 core: Red, White, Blue, Black, Y/G2 core + earth: Red, Black, Y/G3 core + earth: Red, White, Blue, Y/G4 core + earth: Red, White, Blue, Black, Y/GSheath: Red or according to customer requirements Standard:Cable design: AS/NZS5000.1Conductor: AS/NZS 1125Fire resistant : AS/NZS3013 (WS52W)Other sizes can also be produced as you required.SizeConductor StrandsInsulation Thickness2x1.5mm2 7/0.52mm0.6mm2x2.5mm27/0.68mm0.7mm2x1.5mm2+1.5mm27/0.52mm0.6mm2x2.5mm2+2.5mm27/0.68mm0.7mm2x4mm2+2.5mm27/0.85mm+7/0.68mm0.8mm2x6mm2+2.5mm27/1.04mm+7/0.68mm0.8m------Our Feature------Imported equipment with experienced technical teamThe company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from GermanyComplete certification systemQifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.Perfect Production systemQifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.Perfect Sales service systemQifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
