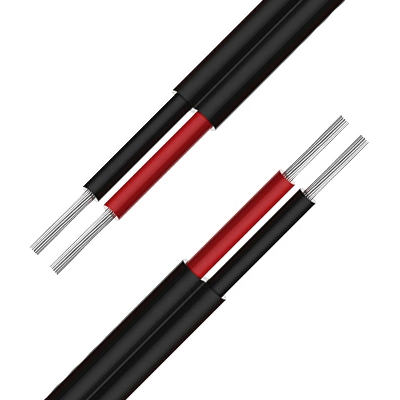

PV1-F High Quality 6.0mm2 10mm2 16mm2 Solar PV Cable

PV1-F High Quality 6.0mm2 10mm2 16mm2 Solar PV CableApplicationDouble insulation, electron-beam cross-linked cables for photovoltaic power station.Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environmentConstructionConductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5Insulation: Polyolefin copolymer electron-beam cross-linkedOuter Sheath: Polyolefin copolymer electron-beam cross-linkedSheath color: Black/Red/Blue or as per customer's requeitTechnical SpecificationNominal Votage: U0/U=600/1000VAC,1000/1800VDCTest Voltage: 6500V,50Hz,5minTemperature Rating:-45ºC ~ +125ºC-40°F ~ +257°FAmbient temperature-40ºC ~ +90ºC-40°F ~+194°FMax. Short circuit temperature:280ºC,+536°FBending Radius: Fixed installation>4X,  Occasionally moved>5XMaterial Properties/ StandardsFire-resistance performance: IEC 60332-1Smoke emission: IEC 61034; EN 50268-2Low fire load: DIN 51900Approvals: TUV 2PfG 1169/08.2007 PV1-FApplication standards: UNE 211 23; UNE 20.460-5-52,UTE C 32-502  Conductor ConstructionConductor øOuter øResistance Max.Current Carring Capacityn×mm²n/mmmmmΩ/KmA1×1.530/0.251.584.913.3301×2.550/0.252.025.457.98411×4.056/0.32.306.14.75551×6.084/0.303.427.23.39701×10.0142/0.304.5691.95981×16.0228/0.305.6010.21.241321×25.0361/0.306.95120.7951761×35.0525/0.308.7413.80.5652181×50.0720/0.309.2014.80.3932801×70.0988/0.3011.0016.90.2773501×95.01349/0.3012.5018.70.214101×1201691/0.3014.2020.70.164480/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
