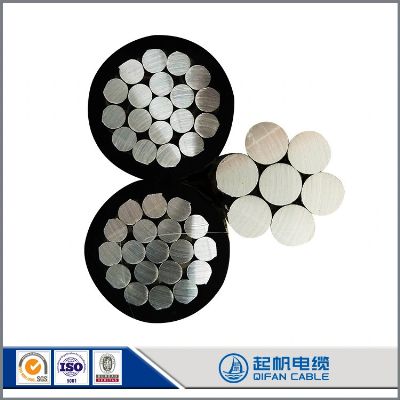

XLPE Insulated Overhead Duplex Triplex Twisted Aluminum Aerial Bundle ABC Cable

Aluminium Service DropAluminium Conductors. Polythylene or Crosslinked Polyethylene Insulation.ABC Cables Applications:Used to supply 3 phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors. ABC Cables Construction:Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR.One conductor is manufactured with an extruded ridge for phase identification.ABC Cables Standards:1.B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.2.B-231 Aluminum conductors, Concentric-Lay-Stranded.3.B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).4.B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.5.B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).6.Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.ABC Cables Using Properties1.Rated Voltage:0.6/1kV2.Cable installation temperature not less than -20°C3.Max. temperature of cable at short circuit(The max. duration does not exceed 5 minutes)   For XLPE insulation is 250°C.   For HDPE insulation is 150 °C.4.The Max. bending radius of cable shall not be less than 20Dmm(D overall diameter of cable)Type of ABC Cable1.Duplex Service Drop:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.2.Triplex Service Drop: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .3.Quadruplex Service Drop: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.Duplex Service Drop   Code* WordPhase ConductorBare Neutral MessengerWeightper 1000 ft. (lbs.)AllowableAmpacities+Size(AWG)Strand-ingInsul.Thick.(mils)Size(AWG)Strand-ingRatedStrength(lbs.)XLPPOLYXLPPOLYACSR NEUTRAL-MESSENGERSetter614566/1119072728570Shepherd674566/1119075758570Eskimo414546/1186011011011590Terrier474546/1186011511511590Chow274526/12850176176150120Bull1/09601/06/14380280280205160* Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP).+ Conductor temperature of 90ºC for XLP, 75ºC for Poly; ambient temperature of 40ºC;emissivity 0.9; 2 ft./sec. wind in sun.Triplex Service Drop         Code* WordPhase ConductorBare Neutral MessengerWeightper 1000 ft. (lbs.)AllowableAmpacities+Size(AWG)Strand-ingInsul.Thick.(mils)Equiv. Dia.(AWG)++Size++(kcmil)Strand-ingRatedStrength(lbs.)XLPPOLYXLPPOLY6201 ALLOY NEUTRAL-MESSENGERMinex6145630.58711101011018570Hippa6745630.58711101071078570Prawn4145448.697176015215211590Bamacle4745448.697176016016011590Shrimp2745277.4772800243243150120Gammarus1/07601/0123.374460390390205160Leda1/09601/0123.374460384384205160Dungenese2/07602/0155.475390483483235185Cyclops2/011602/0155.475390474474235185Flustra3/017603/0195.776790587587275215Lepas4/018604/0246.978560728728315245  Code* WordPhase ConductorBare Neutral MessengerWeightper 1000 ft. (lbs.)AllowableAmpacities+Size(AWG or kcmil)Strand-ingInsul.Thick.(mils)Size(AWG or kcmil)Strand-ingRatedStrength(lbs.)XLPPOLYXLPPOLYAAC NEUTRAL-MESSENGERClydesdale41454788119819810080Pinto47454788121121110080Mustang2745271350318318135105Criollo1/07601/071990503503180140Percheron1/09602/072510619619205160Hanovarian3/017603/0193310764764235185Oldenburg4/018604/0194020945945275210Lippizaner336.41980336.419614615191519370280------Our Feature------Imported equipment with experienced technical teamThe company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from GermanyComplete certification systemQifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.Perfect Production systemQifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation c
