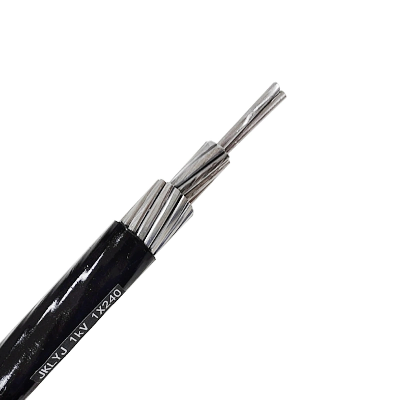

Product Description600V aluminium ABC CAAI cable with XLPE insulation , aerial bundled cable (JKLYJ) Core number : Single, Duplex, Triplex, Quadplex and above The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor, etc. And we can still produce the cables according to the request of customers.Structure StandardsASTM B230, B231, B232 and B-399 ,B498,ICEA S-76-474 Basic InformationModel No: JKLYJConductor: Alumnium AlloyMaterial Shape: Round WireCertificate: ISO9001,ISO14001, CCC, CE Origin: Hebei, China.Voltage: 0.6/1kvCurrent: AC & DCInsulation Material: XLPESheath Material:PVCMaterial Shape: Round wireApplication It is preferred to use of service drop (ABC cables) instead of uninsulated conductorsat low voltage networks. service drop (ABC cables)are especially used at areaswhere the cost of underground networks is expensive and alsofor electrification of rural areas like villages.Technical Date Maximum operating temperature 90 degree Maximum short-circuit temperature 250 degree. Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages. PhasePhasePhaseApprox.Overall DiameterMax. D.C. Resistance of Conductor at 20 CentigradeAAC+UV-XLPECompact ConductorUV-XLPE InsulationNo.X Normal Cross Section of CoresNo.of Al WiresOverall DiameterNormal ThicknessMin.DiameterNo. X mm 2-mmmmmmmmmmohm/km1 X 1074.051.00.86.056.053.081 X 1674.81.20.987.27.201.911 X 25761.20.988.48.401.201 X 3577.01.41.169.89.800.8681 X 5078.31.41.1611.111.100.6411 X 70199.81.41.1612.612.600.4431 X 951911.61.61.3414.814.800.3201 X 12019131.61.3416.216.200.2531 X 1501914.61.81.5218.218.200.2061 X 1853616.22.01.7020.220.200.1641 X 2403618.42.21.8822.822.800.1252 X 1074.051.00.86.0512.103.082 X 1674.81.20.987.214.401.912 X 25761.20.988.416.801.202 X 3577.01.41.169.819.600.8682 X 5078.31.41.1611.122.200.6412 X 70199.81.41.1612.625.200.4432 X 951911.61.61.3414.829.600.3202 X 12019131.61.3416.232.400.2532 X 1501914.61.81.5218.236.400.2062 X 1853616.22.01.7020.240.400.1642 X 2403618.42.21.8822.845.600.1253 X 1074.051.00.86.0513.073.083 X 1674.81.20.987.215.551.913 X 25761.20.988.418.141.203 X 3577.01.41.169.821.170.8683 X 5078.31.41.1611.123.980.6413 X 70199.81.41.1612.627.220.4433 X 951911.61.61.3414.831.970.3203 X 12019131.61.3416.234.990.2533 X 1501914.61.81.5218.239.310.2063 X 1853616.22.01.7020.243.630.1643 X 2403618.42.21.8822.849.250.1254 X 1074.051.00.86.0514.643.084 X 1674.81.20.987.217.421.914 X 25761.20.988.420.331.204 X 3577.01.41.169.823.720.8684 X 5078.31.41.1611.126.860.6414 X 70199.81.41.1612.630.490.4434 X 951911.61.61.3414.835.820.3204 X 12019131.61.3416.239.200.2534 X 1501914.61.81.5218.244.040.2064 X 1853616.22.01.7020.248.880.1644 X 2403618.42.21.8822.855.180.125Company ProfilePackaging & ShippingDetailed PhotosOur CustomerFAQ1.Are you a manufacturer or trading company?We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Beijing or Shijiazhuang Airport.2. How can I get a sample to test your quality?The samples are free, Customers should pay for the courier. Courier charge can be deducted from your order amount. 3. What's your Minimum Order Quantity?MOQ: 100meter. 4. Can I get a discount?Discount can be negotiated when we talked about the order. Anyway we will try our best to provide you the best quality with better price and best shipping rate./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
