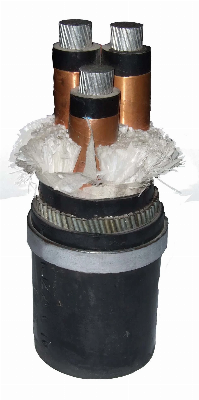

0.6/1kv XLPE Insulated Power Cable for Building Wire

0.6/1kv XLPE Insulated Power Cable for Building Wire -Conductor:Solid or stranded copper-Insulation:Cross-linked polyethylene( XLPE or PVC)-Circuit Identication:The insulation shall be red, black-Filler:Polypropylene lament with lapped binding tape-Inner Sheath:Polyvinyl chloride (Black)-Armor:Galvanized steel wire-Core-covering:Binding tape-Outer Sheath:Polyvinyl chloride (Black)-Application:For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.-Standards / Testing Specications:IEC 60502-1.InstallationThis cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.1. The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.2. Brief Construction:Single core or multi-coreCopper or aluminium conductorXLPE insulationCopper tape or copper wire screenGalvanized steel wire armoredPVC or PE sheath3. Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
