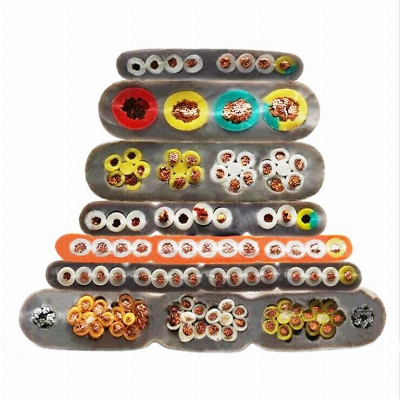

PVC Sheathed Yellow, Orange, White, Black Flat Traveling Control Cable

PVC Sheathed Yellow ,orange,white ,black Flat Traveling Control CableConstruction :1.Conductor : Fine Stranded Bare Copper Wire (acc.to VDE0295 Class 5)2.Insulation  : Special  PVC  (Polyvinyl Chloride)3.Color Available:Yellow ,orange,white ,black,yellow and green                              black with white digital coding  or white  with black digital coding4.Load-bearing material:High-strength galvanized steel wire rope(Optional)5.Sheath:Special  PVC  (Polyvinyl Chloride)   Flexible, cold-resistant, wear-resistant and oil-resistant6.Color:Grey ,Black ,Orange ,BlueStandard:IEC60227-6 ,EN50214,GB5023.6Technial:Rated Voltage:300V/500V (0.75mm2 to 1.0mm2)                        450V/750V  (1.5mm2 to 2.5mm2)Rated Temperature:-15°C to 70°C1. Flat Traveling Elevator Cable  that inner core if parallel array,    when the  suspension length more  35meters and the lift speed more 1.6m/s ,that should use load-bearing material :High-strength galvanized steel wire rope 2. Flat Traveling Elevator Cable  that inner core if Plum shape ,     when the  suspension length more 75meters and the lift speed more  4m/s,that should use load-bearing material :High-strength galvanized steel wire rope Application:The Elevator Cable outer sheath use special PVC materials that will be cold-resistant, wear-resistant and oil-resistantcan,when temperature at minus 15 degrees Celsiusbe  the cable still kept soft and  flexible  . Due to the elevator cable's own weight and the required tension, the cable structure must be specially designed when it is used in large lengths suspension ,it need to add high strength Galvanized steel wire for long life.Specification  Parameter   :No.of cores x Nominal section areaNo. of CoresCoresarrangeNominal Construction of conductorNominalInsulationthicknessNominalOverall diameterNominalCable weightMax.Resistance of conductorat 20ºCNo.X mm²  No.X mmmmmmkg/km
