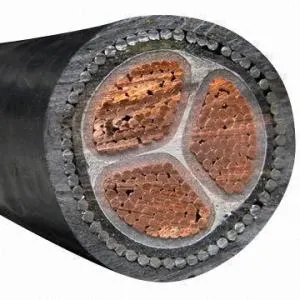

SWA armoured cable 3x240mm2 N2XRY YJV32 600/1000V cableSWA armoured cable 3x240mm2 N2XRY YJV32 600/1000V cable Application240mm 3 Core Steel Wire Armoured SWA Cable made up of a black PVC sheath, XLPE insulation, copper conductors and steel wire armouring. This type of cable is designed for mains electricity in various applications, including laying underground, power networks, incoming mains to homes amongst a host of other uses externally and internally.240mm 3 Core Steel Wire Armoured SWA Cable is suitable and often used for direct burial, with the steel wire armouring providing further protection from external damaged. The XLPE insulation is resistant to a number of different fluids, chemicals and has good heat stability, as well as being UV Resistant. SWA armoured cable 3x240mm2 N2XRY YJV32 600/1000V cableBS 5467,IEC/EN60502-1,IEC/EN60228 , Flame Retardant according toIEC/EN60332-1-2 CONSTRUCTION :SWA armoured cable 3x240mm2 N2XRY YJV32 600/1000V cable Construction ConstructionConductors: Plain circular, compacted or shaped stranded copper or aluminium conductor (Conductor shaped: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded)Insulation: XLPE (cross-linked polyethylene) rated at 90°C Color identification 1 Core : Red or Black, 2 Cores : Red, Black, 3 Cores: Red, Yellow, Blue , 4 Cores: Red, Yellow, Blue, Black, 5 Cores: Red, Yellow, Blue, Black, GreenAbove 5 Cores: Black Cores with White numerals *The above identifying can be changed as user requirement Assembly /Inner Sheath:Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omittedArmour: Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.Sheath:Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.Fire Performance of Cable SheathsCables can be supplied with special flame retardant PVC outer sheath to comply With the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, we can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards. Main Techncial Data TECHNICAL DATA : 240mm 3 Core Steel Wire Armoured SWA Cable Technical DataVoltage: 600/1000vOperating temperature: Maximum 90°C, minimum bending 0°CMaximum short-circuit temperature: 250°C(max. 5s)Minimum bending raduis: x20 cable diameter (armoured) PARAMETER : SWA armoured cable 3x240mm2 N2XRY YJV32 600/1000V cable Parameter0.6/1kV-3 core copper conductor XLPE insulated steel wire armored PVC sheathed power cableNominal cross sectional areaInsulation thicknessSteel Wire diameterSheath thicknessApproximate outer diameterApprox.weightMax.D.C resistance of conductor(20ºC)Current carrying capacity mm2mmmmmmmmkg/kmom/kmIn Air(A)In Ground(A)3X2.50.70.81.815.34057.4120273X40.70.81.816.24814.6126363X60.71.251.818.36963.0833453X100.71.251.820.99301.8346603X160.71.251.823.311911.1559773X250.91.61.827.617450.72777983X350.91.61.82921000.524951193X5011.61.932.526280.3871191443X701.122.137.937280.2681511753X951.122.241.846920.1931862103X1201.222.345.556450.1532172423X1501.42.52.551.373500.1242452703X1851.62.52.755.986980.09912843053X2401.72.52.962.1108370.07543363503X3001.82.5367.4129900.0601389396 Packing & ShippingWe provide you with the best product packaging design services, thereby allowing you to save more shipping chargesFAQ1. Q: Are you the factory or the trading company? A: We are the factory. 2. Q: How long is your guarantee Period? A: We usually offer 1 year guarantee for our general products.3. Q: How can I get the samples? A: We can make the sample order. And usually you will charge for it. But the samples fee will be return to you when you make the bulk order.4. Q: Where is your factory? How can we visit your factory? A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.5. Q: What is your MOQ? A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.FactoryEstablished in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and el
