Wholesale Soft Flat Cable Other Power Rail Supply Device for Crane

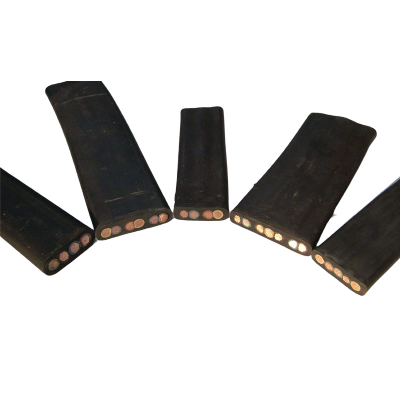

  Product DescriptionFlexible Flat cables are produced by Q1320282,AQ001-91. It is applicable to the exchange rated voltage Uo / U of 450V/750V and below portable electrical equipment. The flat structure is especially applicable to the frequent bending occasions.Advantage1.Smooth and soft                                     5.High temperature resistant 2.Easy to fold and move                           6.Acid and alkali corrosion 3.Not easy to twist                                     7.Aging resistance 4.Flame retardant                                      8.High resistance pulse Technical requirements1.Ac rated voltage:Uo/U=450v/750V (Uo: refers to the rms voltage between any conductor and the ground. U: refers to the rms voltage between any two conductors. ) 2.Voltage service: In the acsystem, the working voltage is not greater 1.1 times than the rated voltage. And in Dc system,The working voltage is not greater 1.5 times than the rated voltage. 3.Wire core long-term working temperature:≤65ºC 4.Products standard:Q/32028AQ001-91 StandardsConductor structureReference parameter of cable20ºC mininsulatedresistanceMax extermal diameterG.W20ºC max dc resistancenumber x areamm²number x diametermmWidth x thicknessmmkg/kmtinned Ω/kmuntinned Ω/kmΩ/km3 x 456/0.3019.6x8.92854.955.09504003 x 684/0.3022.0x9.93803.33.393 x 1080/0.4027.5x12.06151.911.953 x 16126/0.4031.1x13.38301.211.243 x 25196/0.4038.3x15.812300.780.7953 x 35276/0.4042.8x17.616050.554565403003 x 50396/0.4049.2x20.022050.3860.3933 x 70360/0.5055.6x22.529650.2720.2773x4+2x156/0.30+32/0.2025x8.54274.925504003x 6+2x 184/0.30+32/0.2030x125903.33.34504003x4+2x1.584/0.30+32/0.2530x126003.33.38504006x2.5+6x1.549/0.25+30/0.2535x159007.988.05504003x4+4x2.556/0.30+49/0.2532x95204.955.03504003x25+1x10196/0.40+84/0.4053x1818000.780.81504003x16+1x10126/0.40+84/0.3043x1512001.211.27504003x35+2x10276/0.40+84/0.4061x2125000.5540.56403003x50+1x10396/0.40+84/0.4065x2432000.3860.392403004x2.549/0.2522.5x8.22857.988.21504004x456/0.3026.2x9.13964.955.09504004x684/0.3029.2x9.95053.33.39504004x1084/0.3036.5x1283519.11.95504004x25196/0.4051.1x15.816650.780.795504004x35276/0.4057.0x17.621700.540.565403007x2.549/0.2537.2x8.24907.988.21503008x1.530/0.2533.4x7.038013.313.7503008x2.549/0.2541.6x8.25557.988.215030010x1.530/0.2540.3x7.046513.313.75040010x2.549/0.2550.4x8.26807.988.215040012x1.530/0.2548.3x7056513.313.75040012x2.549/0.2560.5x8.28207.988.2150400  Product detailsCompany ProfileChongqing Tianbao Conductor Busbar Electrical Co.,Ltd. Is located in Chongqing ,Established in 2001 and have been involved in this field for more than ten years.Tianbao is professional enterprise in searching and developing the electrical products and engineering.The main products includes:conductor rail system .bus duct system,cable festoon system ,cable drag chain cable tray,lighting busbar and related accessories, our products used in mobile power supply for crane ,electrical hoist .as well as factory,high building power distribution.With excellent products quality ,good service our products are greatly avored by customers around the domestic and foreign market. We will devote ourselves to provide better service for the whole world customer.  Packaging & ShippingWelcome to inquiry~  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
