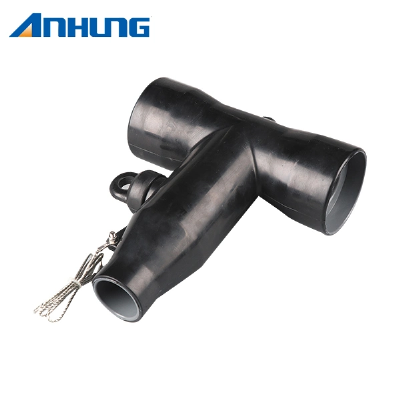

Anhuang specialized in Deadbreak Connector ,we supply high quality Dead break Connector.Implementation Of Standards:Separable insulated connector system for distribution systems above; ANSI / IEEE Std386-2006600VExposed semiconductor jackets for high - voltage cable splices and separable insulated connectors;Extruded insulated power cables and their accessories with rated voltages above 1 kV (Um = 1.2 kV) to 30 kV (Um - 35 kV);Test methods for accessories for power cables with rated voltages from 6 kV (Um =7.2 kV) to 30 kV (Um = 35 kV);Extruded insulated power cables and their accessories with rated voltages from 1 kV(Um = 1.2 kV) to 35 kV (Um = 40.5 kV).Insulation coordination of high - voltage transmission and distribution equipment GB/T4109-1999Technical condition of high - voltage bushing;Gap-free metal - oxide surge arresters;Power cables with extension cones - Partition sets dimensions of sleeves and separable fittings for Um below 35 kV DIN 47636-7-1990.15kV/24kV 600A Class T Deadbreak Connector is used to terminate high voltage underground cable to transformers, switches, switchgear and other apparatus. It is fully shielded, submersible. Our Systems offers an exclusive optional capacitive test point similar to test points on 200A elbow connectors. This allows use of Fault Indicators. T connectors include the T Cable Connector and the load break bushing extender. They also provides a convenient location for a M.O.V.E. arrester or grounding elbow. They available conductor cross section is 25-500m² for 24kV cable.Continuous Voltage RatingsItem15kV data25kV data35kV dataContinuous operating voltage8.7kV/14.4kV15.2kV 26.3kV26kV/35kVAC withstand voltage45kV/1min55kV/5min117kV/5minDC withstand voltage53kV/15min78kV/15m in104kV1.5/50 μs Im pulse with stand voltage95kV125kV215kVPartial discharge voltage13kV22kV45kVCurrent RatingItem200AMP600AMPLoad operatingcurrentAvailable in 14.4kV and 200A 10 times underbreaking and closed operation Fault closedcurrentAvailable in 14.4kV, 1000N0.175 1 time underby fault closed operation Heat stablecurrent16kA 1s30kA 2sPeak withstandcurrent10kA105kAReference No.Conductor cross section(mm²)Stretch range over insulation(mm)AH TT 15/600-242416.6AH TT 15/600-353517.6AH TT 15/600-505019AH TT 15/600-707020.6AH TT 15/600-959522.2AH TT 15/600-12012023.6AH TT 15/600-15015025.2AH TT 15/600-18518526.7AH TT 15/600-24024029AH TT 15/600-30030031.2AH TT 15/600-40040034.4AH TT 15/600-50050037.2Reference No.Conductor Cross Section(mm²)Stretch Range Over Insulation(mm)AH TT 24/600-353518.6AH TT 24/600-505019.6AH TT 24/600-707021AH TT 24/600-959522.6AH TT 24/600-12012024.2AH TT 24/600-15015025.6AH TT 24/600-18518527.2AH TT 24/600-24024028.7AH TT 24/600-30030031.1AH TT 24/600-40040033.2/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
