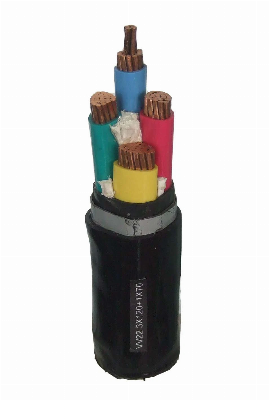

Zryjv Yjv22 High Performance XLPE Power Cable

Zryjv Yjv22 High Performance XLPE Power CableProduct standardXLPE insulated Flame retardant and Fire resistant Power cables are fixed laid in the circuit with frequency 50Hz and voltage up to 3.6/6KV.We can produce Flame retardant and Fire resistant power cables according to standard GB/T19666-2002, Grade A,B,C or D.Rated voltage 0.6/1KV and 3.6/6KV.Conductor of cables can be Copper and Aluminum.The cables can be single core, two cores ,three cores, four cores(include three main cores and one neutral), five cores(include three main cores and one neutral and one earthing core; Four main cores and one neutral).The cables can be with armor and without armor.We can produce cables with PVC outer sheath., flame retardant PVC outer sheath or with fire resistant insulation. The cables are produced according to GB/T12706(eqv IEC 60502) and GB/T18380-2001(eqv IEC60332) or GB/T19216(eqv IEC60331) and or the BS, DIN or other international standards. And we also design and produce cables according to the requirement of our clients. Application characteristics1.Long term working temperature is up to 90 degree C.2.The highest conductor temperature is not more than 250 degree C.(lasting time not over 5 seconds.)3.Laying temperature not less than 0 degree C and the drop height is out of consideration.4.The cable with chemical stability, anti acid, anti alkali, and oil, anti organic solvent, not easy to be burning.5.Easy for installation, easy beading and light.6.Bending ratio as follow: ItemSingle coreThree coresNon armorWith armorNon armorWith armorMin. bending radius during installation 20D 15D 15D 12DNear joint box or cable terminal, bending with care and use template.  15D  12D  12D  10DNote: D is the diameter of cable.  Cable type, name and applicationTypeDescriptionApplicationCuAl(ZR)YJV(ZR)YJLVXLPE insulated and PVC sheathed power cableCan be laid in indoor, tunnels, cable canal, pipelines and loose soil. Cable should not hear a certain breaking force.(ZR)YJY(ZR)YJLYXLPE insulated and PE sheathed power cable(ZR)YJV22(ZR)YJLV22Steel tape armored, XLPE insulated and PVC sheathed power cableLaid underground, cable can bear mechanic force, but should not bear large breading force.(ZR)YJV23(ZR)YJLV23Steel tape armored, XLPE insulated and PE sheathed power cable (ZR)YJV32(ZR)YJLV32Steel wire armored, XLPE insulated and PVC sheathed power cableLaid in water or soil with drop height, the cable can bear mechanic force and large breaking force.(ZR)YJV33(ZR)YJLV33Steel wire armored, XLPE insulated and PE sheathed power cable(ZR)YJV42(ZR)YJLV42Steel wire armored, XLPE insulated and PVC sheathed power cableCan be laid in water or soil with drop height, the cable can bear larger breaking force.(ZR)YJV43(ZR)YJLV43Steel wire armored, XLPE insulated and PE power cable /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
