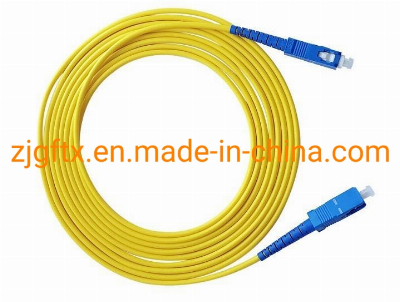

Sc-Sc Optical Fiber Patch Cord

SC-SC Optical Fiber Patch CordFiber optic patch cord is used for hopping from devices to fiber optic cable links. It is generally used in the connection between the optical terminal and the terminal box, and optical fiber communication system, optical fiber access network, optical fiber data transmission and local area SC Fiber optic patch cord is usually connected to GBIC optical module, it has a rectangular housing. And its fastening type is plug-out latch without rotation. (mostly used in router switches)Product Specification:Model: SC-SCType: PC/UPC/APCFiber Length: 1m or any specified lengthFiber mode: Single mode/ Multi modeCable diameter: 0.9/2.0/3.0mmInsert Loss: < 0.2dBReturn Loss: PC> 45dB, UPC> 50dB, APC> 60dBProduct Feature:Low insertion lossLow back reflection lossCustom defined specificationsEasy installationEnvironmentally stableProduct Application:TelecommunicationsLocal area networkFiber to the homeVideo transmissionFiber optic sensingTesting instrumentsCATV ITEMFiber optical Patch cordsOptical Fiber Mode TypeSinglemode 9/125umMultimode 62.5/125umModel NameSCSCGradeSHHATypical Insertion Loss, dB0.150.20.30.5Maximum Insertion Loss, dB0.250.320.40.55Typical Return Loss, dB5045--Minimum Return Loss, dB4842--Operating Temperature, °C-40 ~ +75Storage Temperature, °C-55 ~ +85Cable DiameterΦ0.9mm, Φ2.0mm, Φ3.0mmJacket materiaPVC,LSZHlengthlength is specified.coressingle , duplexFiber LengthTo any specified length  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
