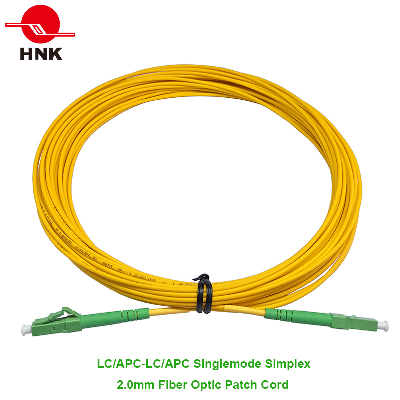

LC/APC-LC/APC Simplex Singlemode 2.0mm Fiber Optic Patch Cable

 Our offers a wide range of patch cords, designed and manufactured for demanding network applications. It comprises of multimode and singlemode. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MU, MTRJ, E2000, DIN connector in simplex and duplex. Standards Compliance .   Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for     Single mode optical connectors and Jumper assemblies. .   IEC 874-1 Generic specification for fiber optic connectors and cables .   ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0 .   Cable flame resistant rate: OFNR or IEC60332-3 standard Features .  100% tested on optical performance    (Insertion Loss  Customer specified length & Return Loss) .  Standard colour is Yellow, Orange, Aqua or Purple,     other colours available upon request .  Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH) .  PC, UPC, APC connectors type available .  High concentricity 2.5mm ceramic ferrule for FC, ST, SC     and 1.25mm ceramic ferrule for LC and MU .  Available in G652D, G657A,  OM1, OM2, OM3 and OM4 .  Position A/Position B markings .  Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes Mechanical, Environmental & Material Data Range of ModeSinglemode or MultimodeCable TypeSimplex or Duplex ZipcordConnector StyleSC, FC, ST, LC, MU, MTRJ, E2000, DINPolish or Ferrule Interface TypePC, UPC, APCCable Diameter0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mmLengthsStandard & Custom LengthsStrength MemberAramid YarnOuter JacketPVC or LSZHCable Assembly Length  (15 meter Tolerance)-0/+10%Jacket Color (Multimode: OM1 & OM2)OrangeJacket Color (Multimode: OM3)AquaJacket Color (Multimode: OM4)Aqua or PurpleJacket Color (Single Mode: G652D & Gb57A)YellowDurability500 cycles(0.2 dB max increase), 1000 mate/demate cyclesOperating Temp.-20 C to +70C/+85C (armoured)Storage Temp.-40 C to +85CFerrule Concentricity< 1μm, Other Ferrule Concentricity < 1μmHumidity (FOTP-5)90-95% at 40°CStrength of Coupling Mechanism (FOTP-185)33 N at 0° for 5 secCable Retention (FOTP-6)50 N at 0° for 5 sec.Twist (FOTP-36)15 N at 0° 5 turns, 10 cyclesFlex (FOTP-1)0.5 Kg at 25 cm, +90° to -90°, 100 cyclesOptical Characteristics Fiber TypeMax. Attenuation(dB/km)Min.Overfill Launch Bandwidth (Mhz.km)Min.Gigabit EthernetLink Distance (m)Gigabit10Gigabit850nm1300nm1310nm1550nm850nm1300nm850nm1300nm850nnmOM1 62.5/125µm≤2.7≤0.6--≥500≥600275550-OM2 50/125µm≤2.3≤0.6--≥500≥500750600150OM3 50/125µm≤2.3≤0.6--≥1500≥5001000600300OM4 50/125µm≤2.3≤0.6--≥3500≥5001100600550G652D 9/125µm--≤0.30≤0.18-----G657A 9/125µm--≤0.35≤0.21-----Optical Performance Data ItemSingle modeMultimodePCUPCAPC62.5/12550/12550/125 10GInsert Loss/connector (single Fiber)0.2dB Max. (0.15dB typ.)0.3dB Max. (0.25dB typ.)Return Loss≥45 dB≥50 dB≥60 dBN.AInsert Loss/MTRJ Connector0.5dB Max. (0.45dB typ.)0.5dB Max. (0.45dB typ.)Pull Strength≥98N≥98NOrdering Information Using the available configurations amend/create product codes using the formula below. Part Number: PC-AA-BB-CDEFGCL Ordering Guide AABBCDEFGCLConnector TypeConnector TypeFiber TypeFiber CountBoot fit forcable diameterLengthJacket MateriaJacketColor(CL)FP,SP,SA,LPFP,SP,SA,LPOM1=62.5/125 OM1OM2=50/125 OM2OM3=50/125 OM3OM4=50/125 OM4G652D=9/125 G652DG657A=9/125 G657ASX=SimplexDX=Duplex4F=4 cores6F=6 cores12F=12 cores09=0.9mm16=1.6mm20=2.0mm30=3.0mm0015=1.5M0200=20M1=PVC2=LSZH3=PEAs noted inColorcode chartConnector Type Code CodeConnectorCodeConnectorCodeConnectorCodeConnectorFPFC/PCFAFC/APCLPLC/PCLALC/APCSPSC/PCSASC/APCTPST/PCTAST/APCMUMUDNDINMTMTRJE2E2000Ordering Sample Part NumberDescriptionPC-FP-FP-G652DDX3000302YEFC/PC-FC/PC Fiber Optic Patch Cord, Singlemode G652D,Duplex, 3.0mm, LSZH, Yellow, 3M./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
