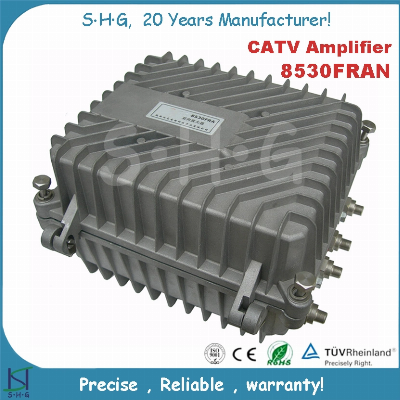

4 Ports Output CATV Bi-Directional Trunk Amplifier

SHG HT-8530FRAN series CATV Bi-Directional Trunk Amplifiers is network management CATV two-way trunk amplifier, with high-gain, multi-funciton with four-output two-way CATV network transmission equipment.It is designed applied to the two-way trunk transmission in CATV network.Key words:1. Bi-directional two-way trunk amplifier2. 4 output ports3. With inner moduleFeatures1. 862MHz bandwidth.2. Switching power supply of high efficiency.3. AC15A power passing capacity.4. Selective status monitor responder is compatible with SCTE standard.5. RF level monitor (optional), which is convenient for real-time monitoring output level.6. High-quality die-cast aluminum housing, excellent performance in heat-dissipating, dustproof, waterproof and shield.SpecificationsItemsUnitsSpecifications  Forward pathReturn pathFrequency rangeMHz52~8625~40Nominal gaindB3018Nominal output leveldBμV 97/104@52/550MHz104In-band flatnessdB±0.75±0.5Gain adjusting rangedB1~16(1dB step)0~10Slope adjusting rangedB2~14(2dB step)1~10C/CTBdB7475C/CSOdB7168Noise figuredB10Return lossdB14HUM%≥65Power supplyVAC38~90 Power consumption max.W32Anti-lighting capacityKv5(10/700µs)Dimensionmm250×230×153Packing dimensionmm358×265×190Gross weightKg4.0Other Optical Transmission EquipmentOther Optic test instruments Certificates ISO9001:2008,  CE,  RoHS,  REACHOur AdvantagesWhy Choose usFAQFAQ Q1:  Are your company factory?       SHG:  Yes!  SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.Q2:  Do you company offer OEM service?       SHG:  Yes! OEM available, your logo & reference on products & package available. Q3. What's your products lead time?    SHG:  Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received).Q4. Where is your nearest sea-port and airport?      SHG:  The nearest sea-port is Ningbo, Shanghai.                 The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge. Q5. What's your Payment Term?      SHG:  We perfer T/T.  30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method. Q6. Quality and Reputation:      SHG:  SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
