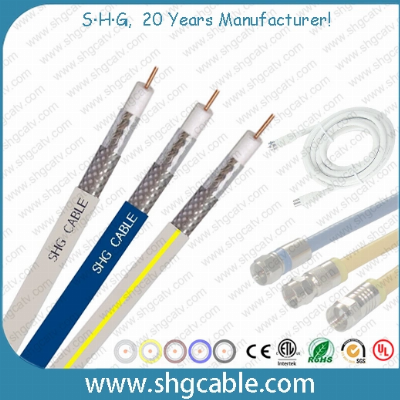

75 Ohms 3GHz Tested CATV Matv Coaxial Cable RG6

SHG high quality 75 ohms CATV coaxial cable RG6 series, full range include RG6 standard shield, RG6 Tri shield, RG6 quad shield, super 5 shield, apply for CATV & Satellite TV & MATV system, high performance test to 3GHz, low attenuation, high return loss, quality warranty.             Test up to 3GHz,    UL, ETL, CE, RoHS, ISO9001 approved !Features           - 100% tested ;                                                          - Low Attenuation;          - High reliability ;                                                      - Return Loss: >20dB (5-2300MHz) ;          - Lifetime Warranty ;                                                - Impedance: 75+/-3 Ohms;          - CE & RoHS, ETL, UL compliant ;                         - Velocity of Propagation: 85%Construction (RG6 standard shield):  Center Conductor: 1.024+/-0.01mm (18AWG) Solid Copper/Copper Clad Steel  Dielectric:  4.57+/-0.05mm Foam PE  Shield:       Optional Single / Double Bonded or unbonded Aluminum / Copper Foil  Braid:         40% - 95% Al-Mg or Copper or CCA wires  Jacket:       6.90+0.05mm PVC  Jelly/APD:  Per customers' requirement  Messenger (Aeria): per requirementCharacteristics  Sparker Test: 4000VAC                       Impedance: 75+/-3 Ohm  Capacitance: 54+3pF/m                       Velocity of Propagation: 85%  Return Loss: 20dB min (5-2300MHz)Attenuation SheetAttenuation Sheet (Coaxial Cables RG6 series)Attenuation[@68 o F. (20 o C. )]Frequency (MHz)Maximum (dB/100 ft. )Maximum (dB/100 m)50.581.9501.54.91002.06.52002.89.24004.113.67005.618.49006.220.310006.521.414508.026.218008.527.921009.531.1225010.034.0300011.437.5Other Cables  -  Tri (3) / Quad (4) / Super (5) shieldPackage  - any length in roll / reel / boxWhy choose us  -  see our cable workshop    We, SHG produce the quality, we focus on quality in our over 20 years growing.  CertificatesCE, RoHS, ISO9001 FAQ Q1:  Are your company factory?       SHG:  Yes!  SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.Q2:  Do you company offer OEM service?       SHG:  Yes! OEM available, your logo & reference on products & package available. Q3. What's your products lead time?   SHG:  Some on stock, then 2 days, and some not on stock, usually it take 7-25 days after order confirmed (deposit received).Q4. Where is your nearest sea-port and airport?        SHG:  The nearest sea-port is Ningbo, Shanghai.                 The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge. Q4. What's your Payment Term?       SHG:  We perfer T/T.  Amount above 3000USD, 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.               Amount less than 3000USD, we perfer 100% in advance ad deposit. Also half as deposit is acceptable, but you bear the high bank fees, if it exceed 30USD each. Q6. Quality and Reputation:       SHG:  SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.Contact US  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
