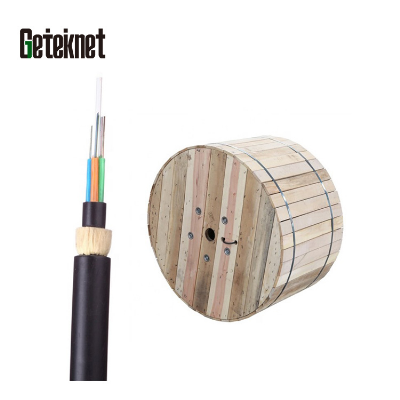

Gcabling Fiber Optic Cable ADSS GYXTW GYTS Indoor Outdoor Cable

    IP65 16cores fiber box            IP65 24cores fiber box               144c odf                                  PLC splitter                        fiber pigtail         Fiber drop cable           ADSS outdoor cable                    IP68 fiber box                       Fiber cabinet                           Fiber tool kitOur Advantages Application*Standard: IEC 60794*Application: FTTH FTTB FTTA Fiber Network cabling system, For aerial, underground duct or direct burial   Specification     *Fiber core: 1-144 fiber*Multi-loose tube gel-filled 1 -- 12 tubes *Fiber cores in each tube:  1 -- 12 cores *Central Strength Member: FRP or Galvanized steel wire optional *Protective reinforcement: Kevlar strengthen / Steel belt / Water blocking yarn optional *Outer Jacket: Black UV Polyethylene ( PE ) *bending radius for installation  Static: 15 x cable diameter  Dynamic: 20 x cable diameter *Operation Temp.: - 40ºC ~ +80ºC Installation Temp.: -20ºC ~ +80ºC Storage/transportation Temp.: - 40ºC ~ +80ºC     Features*High strength loose tube that is hydrolysis resistant*Special tube filling compound ensure a critical protection of fiber Crush resistance and flexibility Product DescriptionLTEMSUNITSSPECIFICATIONFiber type G652DG657AAttenuationdb/km1310nm≤0.361550nm≤0.22Chromatic Dispersionps/nm·km1310nm≤3.51550nm≤181625nm≤22Zero Dispersion Slopeps/nm2·km≤0.092Zero Dispersion Wavelengthnm1300~1324Cut-off Wavelength(λcc)nm≤1260Attenuation vs.Bending(60mm*100tums)db                                                                                                                        (30mmradius,100ring)≤0.1@1625nm                            (10mm radius,1ring)≤1.5@1625nmMode Field Diameterμm9.2±0.4 at 1310nm9.2±0.4 at 1310nmCore-Clad Concentricityμm≤0.5≤0.5Cladding Diameterμm125±1125±1Cladding Non-circularity%≤0.8≤0.8Coating Diameterμm245±5245±5Proof TestGpa≥0.69≥0.69FIBER AND LOOSE BUFFER TURE IDENTIFICATIONNO.123456789101112FiberColorGreenYellowWhiteBlueRedPurpleBrownPinkBlackGrayOrangerAquaSpec of MINI ADSS fiber cableFiber count2-12242-12242-1224SPAN(M)80100120LOOSE TUBEOD(mm):1.8±0.12.0±0.12.2±0.1Materiral:PBTTube121212Max fiber count/tube12FRP/Coating(mm)1.82.02.2Water Blocking materialwater-blocking yam/water-blocking glass yamSheathThickness:Non.1.6mmMaterial:PEOD of cable(mm)6.8±0.27.2±0.27.6±0.2Net weight(kg/km)434955 IP65 16cores fiber box          IP65 24cores fiber box                  144c odf                                PLC splitter                            fiber pigtail   Fiber drop cable                       ADSS outdoor cable             IP68 fiber box                  Fiber cabinet                                    Fiber tool kitFAQ Q1:What are the benefits to be as Gcabling's distributor?A1: 1. You can get especial price wth 20%-30% discount of the official quotation on Gcablingonline store.      2. You can have additional annual sales incentives.      3. Full Gcabling products under "Ready to Ship" to support you to win time.      4. You can be assisted from Gcablingto construct your online store with product technical information, pictures, video, and other promotional documents.Q2:What are the requirements to be as Gcabling's distributor?A2: 1. You have been engaged in cabling solutions;       2 There is no other distributor in your city/country.Q3:What is the protection for distributors?A3: We undertake to protect our distributors if only one distributor is selected in each region.Q4: Is there any financial support for the distributor?A4: For distributors who pass the credit evaluation, we will provide 30-60 days credit period.Q5:What's the lead time after placing an order usually?A5:Gcabling have full range products to support "Ready to Ship". Normally is within 1-2 weeks. Q6: Could you send me products sample befoer i place an order?A6:  in consideration of first purchasing, we are appreciated if you can place a trial order for sample on line directly for your testing; if you need bulk quantity, according to our company's operation process, the first sample confirmation is necessary for batch production orders.   we will  also always keep looking forward to your positive feedback after sample testing. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
