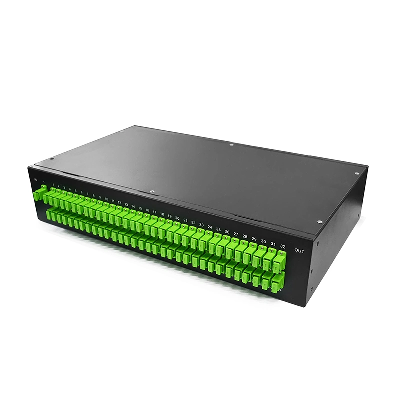

1X64 Rackmount PLC Splitter 2u with Sc APC Connector

1X64  Rackmount PLC Splitter  2U with SC APC Connector 1XN Series PLC(Planar Lightwave Circuit) Splitter Products Overview: Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use. Features Applications Low insertion loss and high uniform Low polarization relevant Redundant reliability FTTX application CATV network Passive Optical Network(PON) Performance Specifications: Type 1x2 1×4 1×8 1×16 1×32 1×64 1x128 Operating Wavelength(nm) 1260~1650 Insertion loss (dB) Typical 4.0 7.2 10.3 13.8 16.8 20.2 23.5 Maximum 4.2 7.4 10.5 14.0 17.0 20.4 23.7 Uniformity (dB) Maximum 0.8 0.8 0.8 1.0 1.2 2.0 2.0 Polarization Dependent Loss (dB) Maximum 0.1 0.1 0.1 0.2 0.2 0.2 0.2 Return loss (dB) Minimum ≥50 Directivity (dB) Minimum ≥55 Operating temperature (ºC) -20 to75 Storage temperature (ºC) -40 to 85 Optical fiber type SMF-28 Or the customer require Optical fiber length (m) 1.0 or customize 3. The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher. 4. Return Loss, if with connector APC>60dB,UPC>55dB. Ordering Information    PR-xxx-xx-xx-x-xx-x-xx    P=PLC Splitter R=RackmoutPort numberInput fiber typeInput fiber lengthInput connectorOutput fiber typeOutput fiber lengthOutput connector 102=1×2202=2×2264=2×64 00=900um loose tube01=900um tight tube02=2mm cable03=3mm cable 10=1.0m12=1.2m15=1.5m No Connector SC/PC(UPC,APC) LC/PC(UPC,APC) FC/PC(UPC,APC) ST/PC(UPC,APC) C=Customized 00=900um loose tube02=2mm cable03=3mm cable 10=1.0m12=1.2m15=1.5m No Connector SC/PC(UPC,APC) LC/PC(UPC,APC) FC/PC(UPC,APC) ST/PC(UPC,APC) Customized  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
