Customized ADSS Cable Communication Optic Optical Fiber

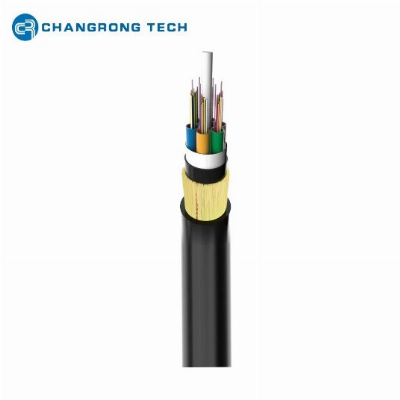

Cross SectionDetailed Photos Product DescriptionThe fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core.  The cable core is filled with water blocking compound and PE inner jacket is extruded. Then  the aramid yarn armored around the inner jacket to reinforce . Finally, PE or AT outer jacket is completed. • It can be installed without shutting off the power.• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back-props.• Large span length and the largest span is up to 1000 meters • Good performance of tensile strength and temperature performance ApplicationSelf-supporting Aerial installation especially for electric fieldStructure can be customized for different spans. Product ParametersCounts2-3032-3638-6062-7274-9698-120122-144146-216218-288Max.fiber counts per tube6612121212121212Units(Tubes or Fillers)6666810121824Cable Diameter(mm)9.79.79.79.711.212.313.513.716.3Weight(Kg/km)74757575100120143142195 Fiber TypeG652D   G655   G657   50/125   62.5/125Tensile Strength(N)Long/Short Term:1900/4800Crush Resistance(N/100mm)Long/Short Term:300/1000Bending Radius(mm)Static/Dynamic:10D/20DTemperature(ºC)Storage /Operation:-40ºC~70ºCOur AdvantagesPackaging & ShippingFAQ 1.Are you the real manufacturer?Yes.  We are the real manufacturer in Chuzhou Anhui Porvince, China. 2.What is your fiber brand ?We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.  3.Can you accept small order?Yes, small order is available .We support new project of our customers as we know business is always from small order. 4.What is your warranty period?25 years for fiber optic cable 5.Which kind of certification you have ?ISO9001, ISO14001 6.What is your delivery time? Usually within 7-10 working days 7.What about your annual production capacity?Outdoor Fiber Optic Cable : annual output is 35000 KM;FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;  8.What is your payment way? T/T, L/C, Western Union and Paypal. 9.Can you supply customized products and logo?-Yes. We supply OEM&ODM service. You can send us your drawing./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
