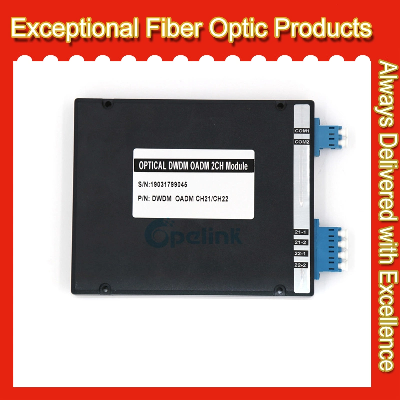

2CH DWDM OADM LC/Upc Dual Fiber Plug-in Module, C21c22

2CH LC/UPC Dual Fiber DWDM OADM Plug-in Module, C21-C22, East and West  100G DWDM Add/Drop Multiplexer uses high performance filter technology and operate with very little optical power loss in order to provider high channels separation and high stability. The 100 GHz DWDM OADM is configurated as both an  DWDM OADM and a terminal multiplexer and demultiplexer to support a broad range of architectures ranging from scalable point-to-point links to four-fiber protected rings. Features:Low insertion loss, low PDLHigh  IsolationCompact  DesignGood channel-to-channel uniformityHigh Reliability and StabilityApplication:Channel Add/DropDWDM NetworkWavelength RoutingCATV Fiber Optical SystemFiber Optical amplifier Optical Specifications:                       Parameter4 Channel8 ChannelAddDropAddDropChannel Wavelength(nm)ITU GridChannel Spacing(GHz)100/200Channel Passband (@-0.5dB bandwidth)(nm)>0.22(100G)/>0.5(200G)Insertion Loss(dB)In---Drop@drop2.03.2Add---Out@add2.03.2In---Out@other2.55.0Add/Drop Channel Ripple(dB)30N/A>30Non-adjacentN/A>40N/A>40Inertion Loss Temperature Sensitivity(dB/ºC)
