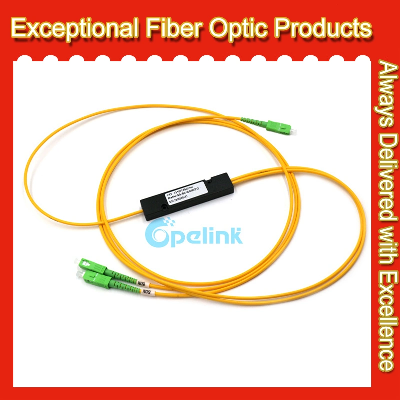

1X2 Fbt Splitter, Sc/APC Plastic Box Fiber Optic Fbt Coupler Splitter

1X2 SC/APC Plastic BOX Fiber Optic FBT Coupler SplitterFBT, or fused biconic taper uses the traditional technology to fuse several fibers together closely. Fibers are aligned by heating for a specific location and length. Fusion process will not stop until the parameters of the fibers reach the required standards.Features:Low insertion loss, low PDLHigh credibility and stabilityIndustry standard and custom housing availableVarious coupling ratio and connector available Application:Optical communication system          CATV System                     System and signal monitoring           Fiber to the home (FTTH)Specifications:   Table(1)                                                                                      Coupling RatioInsertion Loss(dB)P  GradeS  Grade50/50≤3.4≤3.645/55≤3.7/2.7≤3.8/2.940/60≤4.4/2.6≤4.7/2.835/65≤4.8/2.0≤4.9/2.1030/70≤5.7/1.9≤6.0/2.025/75≤6.9/1.3≤6.5/1.420/80≤7.6/1.2≤8.0/1.315/85≤8.6/0.7≤8.9/0.8810/90≤11.0/0.65≤11.5/0.85/95≤14.2/0.4≤14.8/0.52/98≤18.5/0.25≤19.0/0.351/99≤21.5/0.2≤22.0/0.3Excess Loss(Typ.)(dB)≤0.1PDL(Max.)(dB)≤0.1Operating Wavelength(nm)1310±40, 1550±40,1310/1550±40,1310/1550/1490±40 or 850, 850/1310 custom wavelengthDirectivity(dB)≥55Return Loss(dB)≥50Port Configuration1×2 or 2×2  Note: All the data above does not include connectors.Table(2)ParameterSpecificationOperating Wavelength(nm)1310±40, 1550±40,1490±10Fiber TypeSMF(1×N)(2×N)N=3N=4N=5N=6N=8N=10N=16N=24N=32IL(MAX)(dB)5.46.98.18.910.311.513.815.617.2Uniformity(dB)0.50.71.11.31.51.71.822.2PDL(dB)≤0.20≤0.20≤0.30≤0.30≤0.30≤0.40≤0.40≤0.50≤0.50Return Loss(dB)≥55Directivity(dB)≥50Note: All the data above does not include connectors.Order information:TypePortWavelength RatioFiber Pigtail Type(Input-output) Length(Input-output)Connector(Input-output)TypeS=Coupler  W=WDM  Port1001=1x1, 1002=1x2, ..., 4004=4x4, ..., 1032=1x32, 2032=2x32Wavelength98=980, 13=1310, 14=1490, 15=1550, 1314=1310&1490, 1315=1310&&1550, 345=1310&1490&1550, 85=850, 9815=980&1550, 8513=850&1310Coupling Ratio01=1/99, 02=2/98,... 05=5/95,...10=10/90,...45=45/55,...00= 50/50 equal ratio, X=Others/ 01=1dB, 02=2dB,...05=5dB...10=10dB...... X=OthersFiber TypeS1=G652D  S2= G657A1  M5=50/125  M6=62.5/12  M3=OM3  M4=OM4  XX=otherPigtail TypeB=250µm Bare fiber, L=900µm Loose tube,  2=2.0mm,  3=3.0mm,  A=AdapterPigtail Length0.5M=0.5M  10M=10M  XXX=otherConnector TypeFU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, FU/FA= input FC/UPC / output FC/APC,  XX=OthersPacking Dimension01,02,03,04,05,H,L,U,G,XPackage Size:TypePortWavelength RatioFiber Pigtail Type(Input-output) Length(Input-output)Connector(Input-output)TypeS=Coupler  W=WDM  Port1001=1x1, 1002=1x2, ..., 4004=4x4, ..., 1032=1x32, 2032=2x32Wavelength98=980, 13=1310, 14=1490, 15=1550, 1314=1310&1490, 1315=1310&&1550, 345=1310&1490&1550, 85=850, 9815=980&1550, 8513=850&1310Coupling Ratio01=1/99, 02=2/98,... 05=5/95,...10=10/90,...45=45/55,...00= 50/50 equal ratio, X=Others/ 01=1dB, 02=2dB,...05=5dB...10=10dB...... X=OthersFiber TypeS1=G652D  S2= G657A1  M5=50/125  M6=62.5/12  M3=OM3  M4=OM4  XX=otherPigtail TypeB=250µm Bare fiber, L=900µm Loose tube,  2=2.0mm,  3=3.0mm,  A=AdapterPigtail Length0.5M=0.5M  10M=10M  XXX=otherConnector TypeFU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, FU/FA= input FC/UPC / output FC/APC,  XX=OthersPacking Dimension01,02,03,04,05,H,L,U,G,X Package Dimension: /mmSS1Ф3x50  steel tube0490x20x9.5 plastic boxSS2Ф3x54  steel tubeXCustomizedSS3Ф3.5x54steel tube03141x115x18 plastic boxSS4Ф5x70  steel tube02120x80x18 plastic boxSS5Ф3x60  steel tube01100x80x10 plastic boxSS6Ф3x35  steel tubeU19'' x=1,2,3,4 U rackSS7Ф3x40 steel tubeGX=1,2,3,4 U LGXSS8Ф4.0x65  steel tube  ----------------------------------------------------FAQ-------------------------------------------------------Q1. Can I have a sample order for this product?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.  Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than   Q3. Do you have any MOQ limit for sample order?A: Low MOQ, 1pc for sample checking is available  Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.  Q5. How to proceed an order for the product?A: Firstly let us know your requirements or application.    Secondly We quote according to your requirements or our suggestions.    Thirdly customer confirms the samples and places deposit for formal order.    Fourthly We arrange the production.  Q6: Do you offer guarantee for the products?A: Yes, we offer 1-2 years warranty to our formal products.Q7: What action will you take if there are some product problems?A: If there are defective ones in the batch of products, we will offer spare ones for.  /* January 22, 2024 19:08:37 */!function(){function s(e
