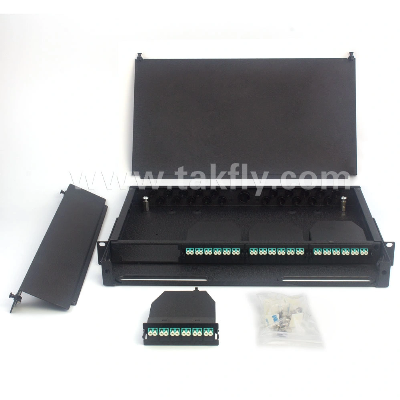

1u 19 Rack Mounted 48 Fibers MTP MPO Patch Panel Box

1U 19 Rack Mounted 48 fibers MTP MPO Patch Panel BoxDescription: MPO Fiber Optic Patch Panel is used for trunk cable connection and distribution cable management in distribution area of MDA, IDA or HDA data centers. It could be installed in 19 inch racks and cabinets. It could accommodate MPO cassette modules or MPO adapter panels.  Features: > Could install in 19 inch racks and cabinets, manage MPO cassette modules > odular design realizes high port number and improves high density connection capabilities. > 1U MPO Fiber Optic Patch Panel can accommodate 4pcs of MPO cassette modules. MPO cassette modules can install duplex LC adapters with the capacity up to 96 fibers maximum, simplex SC adapters with the capacity up to 48 fibers maximum and MPO adapters with the capacity up to 288 fibers maximum. > Made of premium cold rolled steel. > The steel is processed by degreasing, pickling, Rustproof phosphating, cleaning with water, and electrostatic spraying. The thickness of spraying is 80um~100um. European RoHS compliant. > MPO Patch Panel includes cable management and labels. > Convenient installation and easy management. > The density is more than 4 times of traditional splicing patch panels. It saves much room of cabinets, improves use ratio of cabinets, and creates value of data center construction. > Modular design is easy for upgrade and maintenance.  Application: Machine rooms of data center and intranetParameter:ItemMPO/MTPLCEnd face typePC and APCPC,UPC and APCFiber typeSM (G652,G655,G657); MM (OM1-OM5)Cable DiameterMini Round cable:Max4.5mmRibbon cable:Max3.0*5.0mm0.9mm, 2.0mm, 3.0mmInsertion lossStandard:≤0.35dB/0.7dB(Typical/Max)Low Loss:≤0.2dB/0.35dB(Typical/Max)≤ 0.3dBReturn lossSM: APC≥60dBMM: PC≥20dBSM: UPC ≥50dBSM: APC≥60dBMM: PC≥35dBTest Wavelength(nm)SM:1310/1550nmMM:850/1300nmRepeatability≤ 0.1dBDurability≤ 0.2dBInterchangeability≤ 0.2dBOperating Temperature-20ºC~70ºCStorage Temperature-40ºC~80ºCOuter Sheath MaterialLSZHBending radius (Static/Dynamic)10D/20DLengthCustomizedOrder informationProduct nameColorInner boxShipping box1U 48F MPO/MTP patch panelBlack1PCS5PCS1U 96F MPO/MTP patch panelBlack1PCS5PCSBox Dimension : 1U = 444*340*44mm > Each 1piece / box , good protection to box and internal fibers. > Front dustproof panel is transparent, but flexible to take off. It is good for fiber protection and system safe. > Each patch panel can hold 4 pieces of MPO cassette modules, each modules can do 12fibers=6xLC duplex, or 24fibers=12xLC duplex. > It is also can use only for MPO ports for truck cable. > All modules use high quality LC duplex adapters without flange,it is high compact, datacenter system speical use. > Each MPO cassette module can be taken off , and it is sliding type. Good to install and maintance. > Front operation panel have 2 long holes for cable routing and in and out.    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
