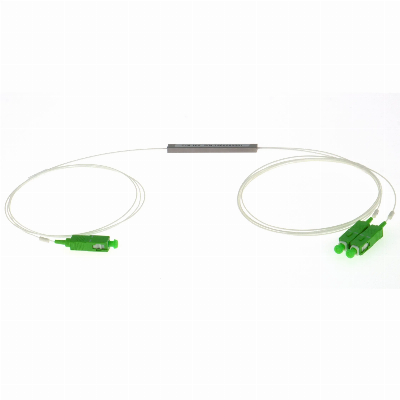

1X2 900um Mini Steel Tube Fiber Optic PLC Splitter

1X2 900um Mini Steel Tube Fiber Optic PLC SplitterPlanar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Takfly provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements. Features:1. Various coupling ratio2. Single mode and multi mode available3. Low insertion loss, low PDL4. Environmental stable5. Industry standard and custom housing available6. Variety of connectors available 7.1x2, 1x4 and 1x n customized couplers configuration availableApplications: 1. Optical communication system2. System and signal monitoring3.CATV Systems & Fiber Sensors4. Fiber to the home (FTTH)5. Network redundancy 6. Laser splittingCompliance 1. Telcordia GR-1209-CORE 2. Telcordia GR-1221-CORE 2. RoHS&CESpecifications:ItemParameterOperating Wavelength(nm)1260 ~ 1650Type(1*N)1*21*41*81*161*321*64Max.Insertion Loss(dB)3.97.210.313.516.820.3Max.Uniformity(dB)0.80.80.81.01.52.0Min.Return Loss(dB)55Max.PDL(dB)0.20.30.30.30.30.5Type(2*N)2*22*42*82*162*322*64Max.Insertion Loss(dB)4.27.510.613.917.220.8Max.Uniformity(dB)0.81.01.21.51.82.0Min.Return Loss(dB)55Max.PDL(dB)0.20.30.30.30.30.5Fiber TypeITU-T G657A1 , G657A2 and G.652DMax.Temperature Stability(dB)0.5( Typical 0.3 )Operating Temperature(ºC)-40 ~ +85Storage Temperature(ºC)-40 ~ +85All measurement are made at room temperature, and connectors not included  Why choose TAKFLY--- Advantages as follows: Professional manufacturer:  More than 18 years manufacturing experience in Fiber optic products-one stop purcharsing.More than 450 assembly workers with 3 years experienced; More than 26 R&D Engineers;16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines;More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.OEM Brand is acceptable.Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.After-sales Services: Available for 24 hours.Quality Control: Spot check the raw material incoming inspection before production;Fully check after every individual process finished; Fully check production half done;Fully check the finished products before packing; Spot check before shipping;Delivery: Samples: 1-3 working days.Mass Production Order: 3-7 working days.Packaging: Plastic Bag, Carton and Pallet are available according to your request.Shipping:DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;By Sea or By Air, could use your own pointed forwarder or our cooperated one.Payment Term:  T/T,Paypal, Western Union and L/C are available.Price:  If your QTY is big, the price could be negotiated.I have been working in this field more than 5 years, I believe, I could give you very good service and professional answers!If you're interested in our products or have any doubt, why not send me inquiry at once?/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
