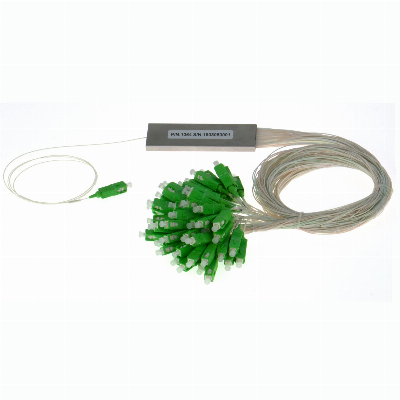

1X2 1X8 1X16 1X64 FTTX 900um Fiber Optic PLC Splitter

 1X2 1X8 1X16 1X64 FTTX 900um Fiber Optic PLC SplitterPLC-Planar Lightwave Circuit Splitter is a kind of splitter based on the integrated quartz baseplate. Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into fiber or two fibers.Feature 1. Broadband Operation Wavelength 2. Low Insertion loss 3.  Low PDL 4.  Compact Design 5. Good channel-to-channel uniformity 6.  High Reliability and StabilityApplications  1. Telecommunication sector  2.  PON Syster  3.  FTTH  4.  CATV  5. Video TransmissionSpecificationItemParameterOperating Wavelength(nm)1260 ~ 1650Type(1*N)1*21*41*81*161*321*64Max.Insertion Loss(dB)3.97.210.313.516.820.3Max.Uniformity(dB)0.80.80.81.01.52.0Min.Return Loss(dB)55Max.PDL(dB)0.20.30.30.30.30.5Type(2*N)2*22*42*82*162*322*64Max.Insertion Loss(dB)4.27.510.613.917.220.8Max.Uniformity(dB)0.81.01.21.51.82.0Min.Return Loss(dB)55Max.PDL(dB)0.20.30.30.30.30.5Fiber TypeITU-T G657A1 , G657A2 and G.652DMax.Temperature Stability(dB)0.5( Typical 0.3 )Operating Temperature(ºC)-40 ~ +85Storage Temperature(ºC)-40 ~ +85Packing Size for PLC Splitter LGX BoxSplitter Packagin Type and DimensionPackage typeUnit(mm)1*21*41*81*161*321*64Basic Packagin Metel boxL×W×H40*4*440*4*440*4*450*7*460*7*460*12*4Mini Module Packagin Metel box60*7*460*7*460*7*460*12*480*20*6100*40*6Module Packagin Plastic box100*80*10100*80*10100*80*10120*80*18120*80*18140*115*18  Package typeUnit(mm)2*22*42*82*162*322*64Basic Packagin Metel boxL×W×H60*7*460*7*460*7*460*7*460*7*480*12*4Mini Module Packagin Metel box70*7*470*7*470*7*480*12*480*20*6100*40*6Module Packagin Plastic box100*80*10100*80*10100*80*10120*80*18120*80*18140*115*18Why choose TAKFLY--- Advantages as follows: Professional manufacturer:  More than 18 years manufacturing experience in Fiber optic products-one stop purcharsing.More than 450 assembly workers with 3 years experienced; More than 26 R&D Engineers;16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines;More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.OEM Brand is acceptable.Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.After-sales Services: Available for 24 hours.Quality Control: Spot check the raw material incoming inspection before production;Fully check after every individual process finished; Fully check production half done;Fully check the finished products before packing; Spot check before shipping;Delivery: Samples: 1-3 working days.Mass Production Order: 3-7 working days.Packaging: Plastic Bag, Carton and Pallet are available according to your request.Shipping:DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;By Sea or By Air, could use your own pointed forwarder or our cooperated one.Payment Term:  T/T,Paypal, Western Union and L/C are available.Price:  If your QTY is big, the price could be negotiated.I have been working in this field more than 5 years, I believe, I could give you very good service and professional answers!If you're interested in our products or have any doubt, why not send me inquiry at once?  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
