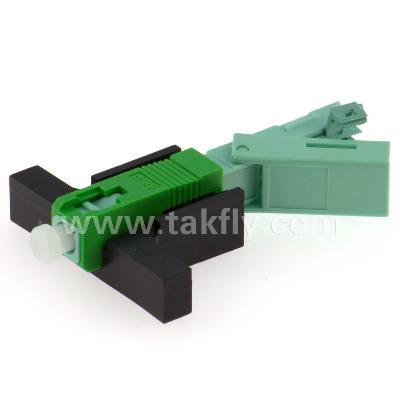

Sc/APC Filed Terminated Connector Gpon Fiber Optics Fast Connector

SC/APC Filed Terminated Connector Gpon Fiber Optics Fast ConnectorFiber Optic Fast Connector designed for FTTH  is a new generation of fiber connector used in assembly. It can provide Open flow and Precasttype of products, whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and highefficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.Adapted fiber pre-installed structure, and convenient for field installation.Application· Connections at the desk for LAN environments· Optical access network· Fiber to the Subscriber (FTTX) applications· Patch panels· Direct equipment terminationFeature· Factory-installed fiber stub· No epoxy or polishing required· Quick and easy fiber termination in the field· Eliminates cable excess length and pigtail splice storage· Cost effectiveTechnical specificatItemParameterCable Scope3.0 x 2.0 mm &2.0*1.6mm  Drop CableSize51*9*7.55mmFiber Diameter125μm ( 652 & 657 )Coating Diameter250μmModeSM  SC/APC  SC/UPC Operation Timeabout 15s(exclude fiber presetting)Insertion Loss≤ 0.5dB(1310nm & 1550nm)Return LossSC/APC≤ 55dB  SC/UPC ≤ 50dBSuccess Rate>98%Reusable Times>10 timesTighten Strength of Naked Fiber>5 NTensile Strength>50 NTemperature-40 ~ +85 COn-line Tensile Strength Test (20 N) IL ≤ 0.3dBMechanical Durability(500 times) IL ≤ 0.3dBDrop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dBRelevant Solutions· Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of   network revolution. It also reduce the use of sockets and adapters, save cost of project.· With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides    complete protection with its unique design.· Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly   used in specific ONU.More Fast Connector From TakflyOur Workshop and Office Scene***For Further information about  SC/APC Filed Terminated Connector Gpon Fiber Optics Fast Connector, please don't hesitate to leave me message!!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
