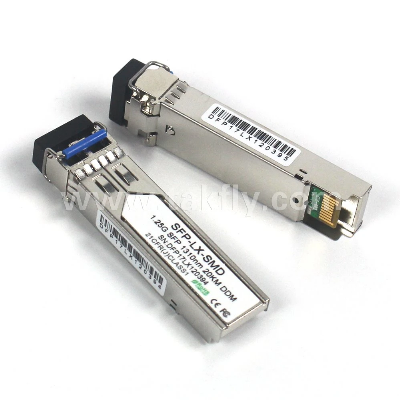

1.25g Mini GBIC Optical SFP Transceiver Module 20km

1.25g Mini GBIC Optical SFP Transceiver Module 20km1.DescriptionThe SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbpsand 20KM transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safetyrequirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. 2.Features1.Data-rate of 1.25Gbps operation;2.1310nm FP laser and PIN photodetector for 20KM transmission;3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle;4.Digital Diagnostic Monitoring:Internal Calibration or External Calibration;5.Compatible with SONET OC-24-LR-1;6.Compatible with RoHS;7.+3.3V single power supply;8.Operating case temperature:   Standard : 0 to +70°C;   Extended : -20 to +85°C;   Industrial : -40 to +85° ;3.Application1.Gigabit Ethernet;2.Fiber Channel;3.Switch to Switch interface;4.Switched backplane applications;5.Router/Server interface;6.Other optical transmission systems.4.ParemeterCsico Compatible GLC-LH-SM-20Vendor Name TAKFLYReceiver Sensitivity
