Dielectrico Autosoportado 12/24 Hilos ADSS Optical Fiber Cable

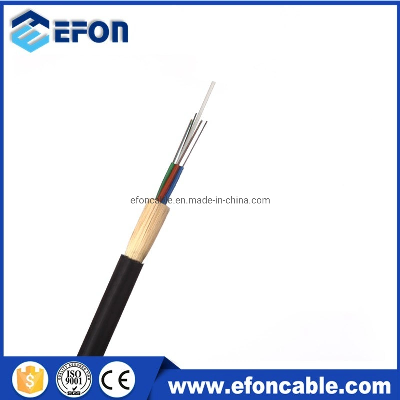

Dielectrico autosoportado 12/24 Hilos ADSS Optical Fiber CableProduct Description:  ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required.Product Construction: Fiber: 2-144 fibers Uni-loose tube gel-filled Central Strength Member: Fiberglass reinforced plastic (FRP) Strength Member: Dupon Kevlar Yarn  Outer Jacket: Black UV and waterproof polyethylene (PE).  Features: Can be installed without shutting off the power.Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.Good performance of tensile strength and temperature.The design life span is over 30 years.  Applications: The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.For overhead power lines under 110kV, PE outer sheath is applied.For power lines equal to or over 110kV, AT outer sheath is applied.  Optical Characteristics:Fiber TypeG.652G.65550/125^m62.5/125^mAttenuation(+20X)850 nm
